| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | RVYUAN |
| 인증: | IEC/NEMA/JIS/RoHS/ISO |
| 모델 번호: | 클래스 220 |
| 최소 주문 수량: | 10kg |
| 가격: | negotiable |
| 포장 세부 사항: | 통과 스풀 |
| 배달 시간: | 2-15 워크딩 일 |
| 지불 조건: | T/T/PAYPAL |
| 공급 능력: | 당신의 요구를 충족시키세요 |
| Shape: | Rectangular | Conductor Dimension (Width): | 1.0mm |
|---|---|---|---|
| Unilateral Insulation Layer Thickness (Width): | 0.2mm | Applications: | Motor, transformer |
| Thermal Grade: | 220 | Key word: | MW 84-C 0.2X1.0mm Polyamideimide 220℃ Enameled Coated Flat Copper Wire for Wound Coils |
| Thermal rating: | 220 | Enamel coating: | AIW |
| 강조하다: | polyamideimide enameled flat copper wire,220C rectangular copper wire,0.2X1.0mm enameled copper wire |
||
| Attribute | Value |
|---|---|
| Shape | Rectangular |
| Conductor Dimension (Width) | 1.0mm |
| Unilateral Insulation Layer Thickness (Width) | 0.2mm |
| Applications | Motor, transformer |
| Thermal Grade | 220 |
| Thermal Rating | 220℃ |
| Enamel Coating | AIW |

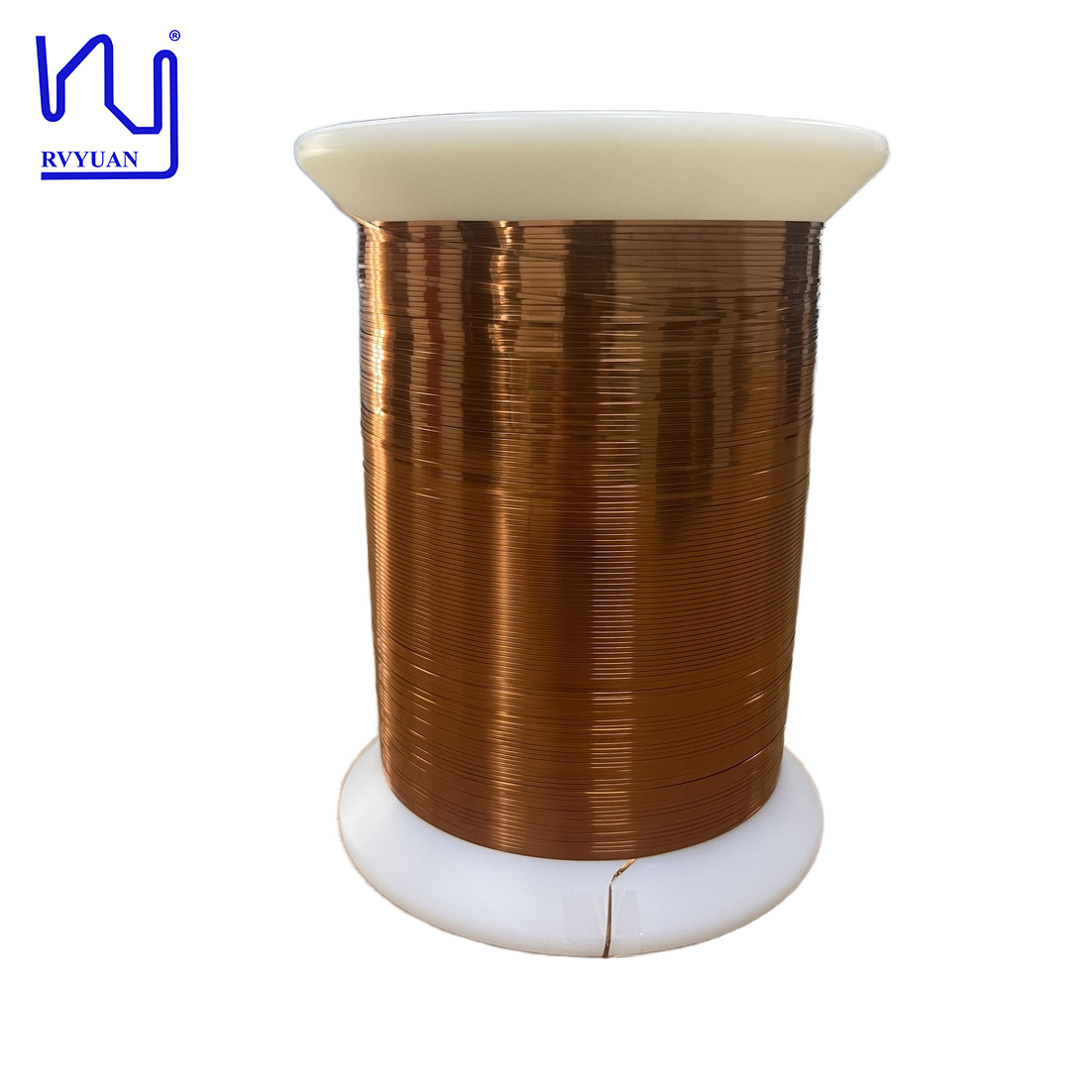

MW 84-C 0.2X1.0mm Polyamideimide 220℃ enameled coated flat copper wire is designed for wound coils with superior performance characteristics.
Ideal for various industries including electronics, automotive, and digital applications to enhance product efficiency and performance.
| Item | Conductor dimension | Insulation thickness | Overall dimension | Dielectric breakdown voltage (kV) | Conductor resistance (Ω/km 20℃) | |||
|---|---|---|---|---|---|---|---|---|
| T (mm) | W (mm) | T (mm) | W (mm) | T (mm) | W (mm) | |||
| SPEC AVE | 0.200 | 1.000 | 0.025 | 0.0025 | / | / | ||
| Max | 0.209 | 1.060 | 0.040 | 0.004 | 0.250 | 1.100 | 96.380 | |
| Min | 0.191 | 0.940 | 0.010 | 0.010 | 0.700 | |||
