Solderable 2.4mm Rectangular Wire Enameled Flat Copper Wire For Motor

기본 정보
원래 장소: 중국
브랜드 이름: RVYUAN
인증: IEC/NEMA/JIS/RoHS/ISO
모델 번호: 우웨
최소 주문 수량: 10kg
가격: negotiable
포장 세부 사항: 통과 스풀
배달 시간: 7일
지불 조건: T/T, 페이팔
공급 능력: 당신의 요구를 충족시키세요
상세 정보
Shape: Rectangular Width of conductor: 2.4mm
Unilateral Insulation Layer Thickness (Width): 0.025mm Thickness of conductor: 0.5mm
Applications: Solderable 2.4mm Rectangular Wire Enameled Flat Copper Wire For Motor Thermal Grade: 220
Key word: Solderable 2.4mm Rectangular Wire Enameled Flat Copper Wire For Motor
강조하다:

Flat Copper Wire Rectangular

,

2.4mm Solderable Copper Wire

,

Motor Solderable Copper Wire


제품 설명

Solderable 2.4mm Rectangular Wire Enameled Flat Copper Wire For Motor



If you are looking for reliable, high-performance solutions for motor and transformer winding, our custom enameled rectangular copper wires are the ideal choice. We are committed to providing high quality and customized services, and are committed to supporting your projects with the best quality enameled rectangular copper wires on the market.



Item



Conductor dimension



Unilateral

insulation thickness

Overall

dimension



Dielectric

breakdown

voltage



Conductor

resistance

  T W T W

 T



W
Unit

mm



mm



mm mm

mm

mm

kv

Ω/km 20℃

SPEC



AVE



0.500



2.400



0.025 /

/



/

Max



0.509



2.460



0.040 0.550 0.0550 2.500   16.090

Min



0.491



2.340 0.010





  0.700

No. 1



0.501



2.405 0.039 0.544

0.544



2.483



4.880

















  14.437

No. 2 0.500 2.406 0.039 0.545 0.545 2.485 4.331
No. 3 0.502 2.407 0.039 0.543 0.543 2.484 3.660
No. 4             4.515
No. 5             4.600
No. 6             4.770
No. 7             4.440
No. 8             4.250
No. 9             3.990
No. 10             3.750

Avg



0.501



2.406 0.022 0.039 0.544 2.484 4.319

No.of reading



3 3 3 3 3 3 10

Min. reading



0.500 2.405 0.021 0.022

0.543



2.483 3.660

Max. reading



0.502 2.407 0.023 0.039

0.545



2.485 4.880

Range



0.002



0.002



0.002 0.001

0.002



0.002



1.220

Result



OK



OK



OK



OK

OK



OK



OK



OK

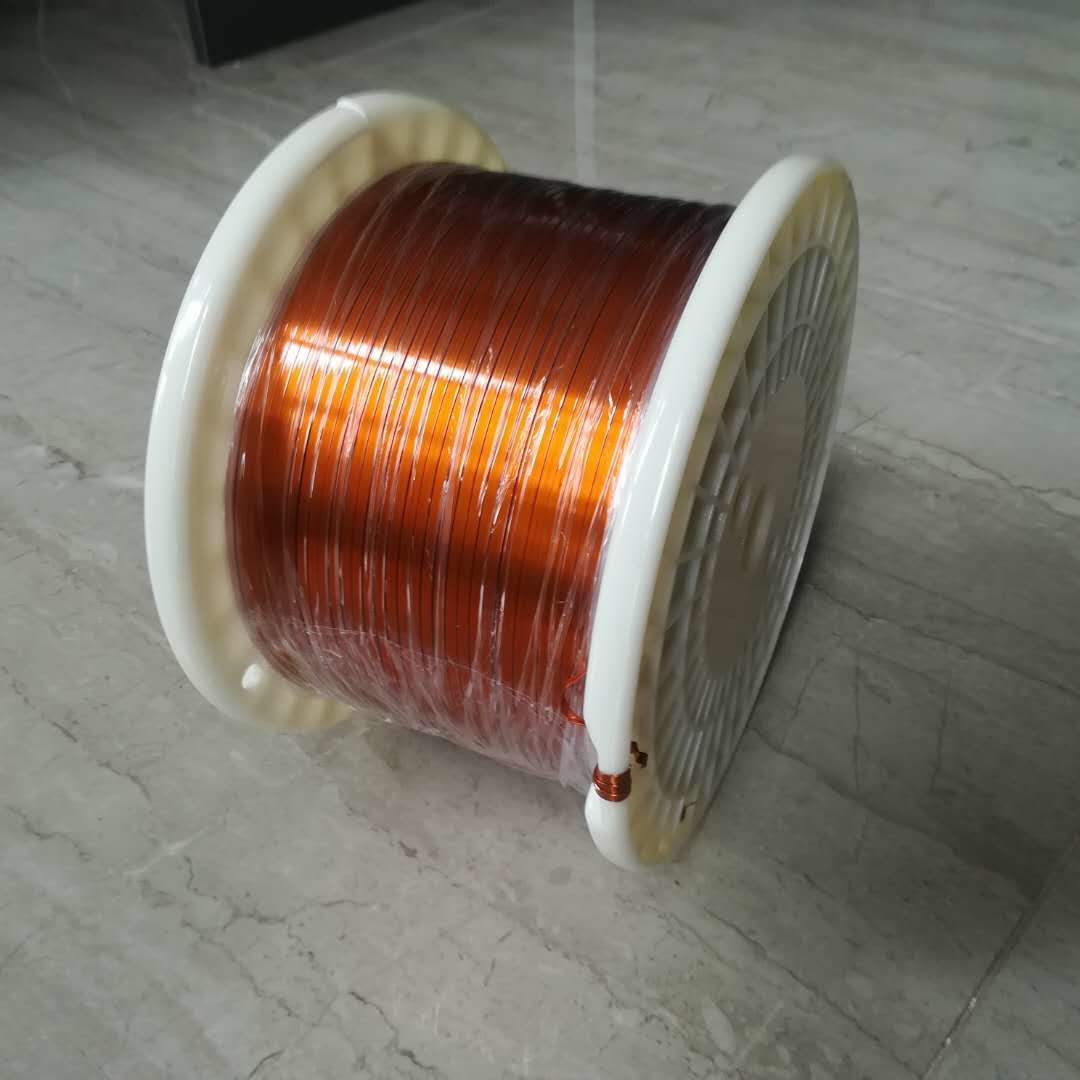

Solderable 2.4mm Rectangular Wire Enameled Flat Copper Wire For Motor 0
