UEWH-180 0.50mm 0.06mm Rectangular Wire Enameled Flat Copper Wire

기본 정보
원래 장소: 중국
브랜드 이름: RVYUAN
인증: IEC/NEMA/JIS/RoHS/ISO
모델 번호: 우웨
최소 주문 수량: 10kg
가격: negotiable
포장 세부 사항: 통과 스풀
배달 시간: 7일
지불 조건: T/T, 페이팔
공급 능력: 당신의 요구를 충족시키세요
상세 정보
Shape: Rectangular Width of conductor: 2.4mm
Unilateral Insulation Layer Thickness (Width): 0.025mm Thickness of conductor: 0.5mm
Applications: UEWH-180 0.50mm 0.06mm Rectangular Wire Enameled Flat Copper Wire Thermal Grade: 220
Key word: UEWH-180 0.50mm 0.06mm Rectangular Wire Enameled Flat Copper Wire
강조하다:

0.06mm Rectangular Wire

,

UEWH-180 Rectangular Wire

,

0.50mm Enameled Rectangular Wire


제품 설명

UEWH-180 0.50mm 0.06mm Rectangular Wire Enameled Flat Copper Wire



We understand that every project has unique requirements, so we offer small custom options. For finer wire gauges, our minimum order quantity is just 10 kg. We can offer a wide range of sizes, with thicknesses ranging from 0.03 mm to 3 mm, and widths up to 15 mm. This flexibility allows you to tailor your wire to your specific needs, ensuring you get the perfect product for your application.



Item



Conductor dimension



Unilateral

insulation thickness

Overall

dimension



Dielectric breakdown

voltage



Conductor

resistance

  T W T W

 T



W
Unit

mm



mm



mm mm

mm

mm

kv

Ω/km 20℃

SPEC



AVE



0.500



2.400



0.025 /

/



/

Max



0.509



2.460



0.040 0.550 0.0550 2.500   16.090

Min



0.491



2.340 0.010





  0.700

No. 1



0.501



2.405 0.039 0.544

0.544



2.483



4.880

















  14.437

No. 2 0.500 2.406 0.039 0.545 0.545 2.485 4.331
No. 3 0.502 2.407 0.039 0.543 0.543 2.484 3.660
No. 4             4.515
No. 5             4.600
No. 6             4.770
No. 7             4.440
No. 8             4.250
No. 9             3.990
No. 10             3.750

Avg



0.501



2.406 0.022 0.039 0.544 2.484 4.319

No.of reading



3 3 3 3 3 3 10

Min. reading



0.500 2.405 0.021 0.022

0.543



2.483 3.660

Max. reading



0.502 2.407 0.023 0.039

0.545



2.485 4.880

Range



0.002



0.002



0.002 0.001

0.002



0.002



1.220

Result



OK



OK



OK



OK

OK



OK



OK



OK

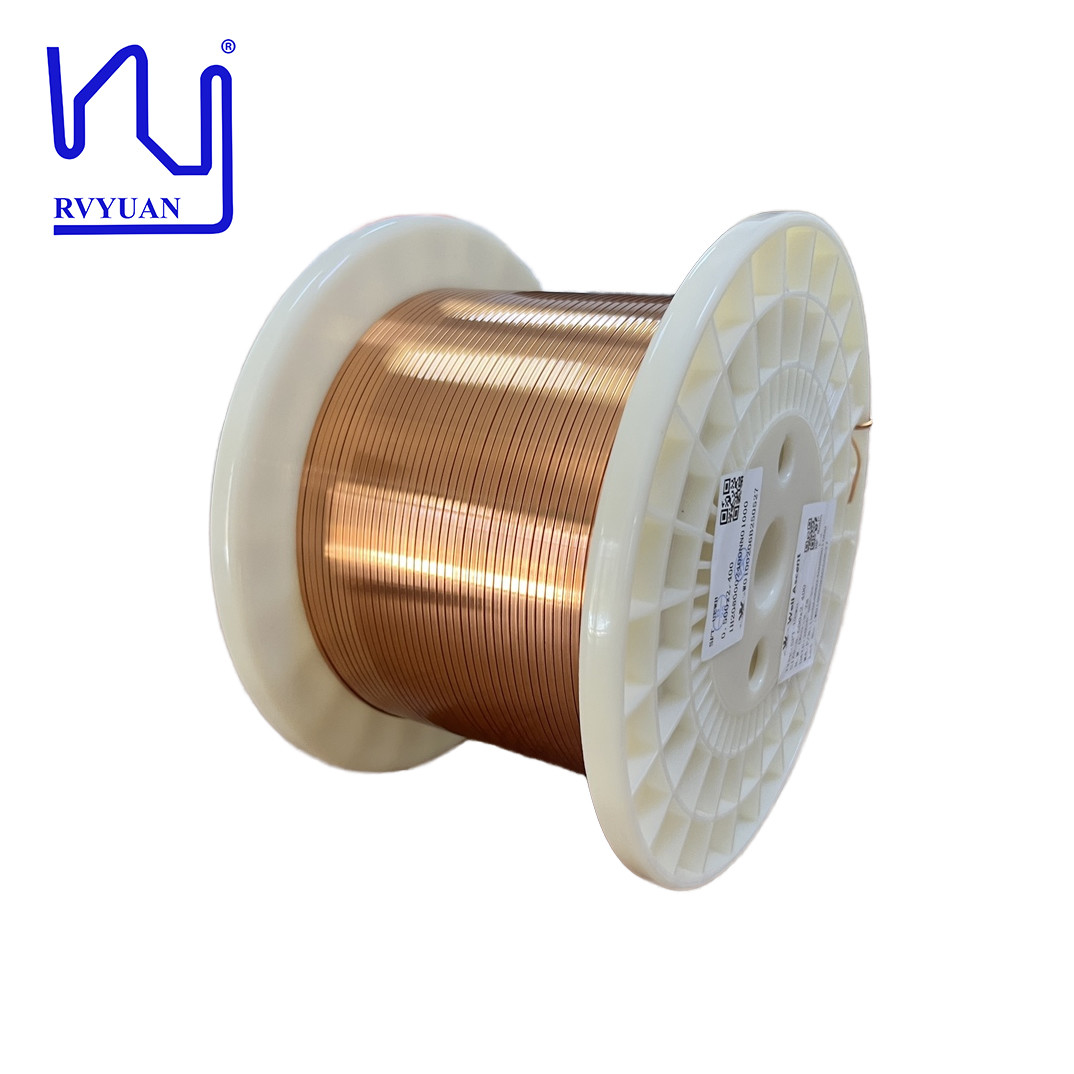

UEWH-180 0.50mm 0.06mm Rectangular Wire Enameled Flat Copper Wire 0
