| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | RVYUAN |
| 인증: | IEC/NEMA/JIS/RoHS/ISO |
| 모델 번호: | 클래스 220 |
| 최소 주문 수량: | 디퍼레트 MOQ와 다른 유형 |
| 가격: | negotiable |
| 포장 세부 사항: | 통과 스풀 |
| 배달 시간: | 2-15 워크딩 일 |
| 지불 조건: | 협상, T/T, L/C |
| 공급 능력: | 당신의 요구를 충족시키세요 |
| Shape: | Rectangular | Conductor Dimension (Width): | 2mm |
|---|---|---|---|
| Unilateral Insulation Layer Thickness (Width): | 0.5mm | Applications: | Supplies Wire Enameled Flat Copper Wire 2.0mm For Motor |
| Thermal Grade: | 220 | Key word: | Supplies Wire Enameled Flat Copper Wire 2.0mm For Motor |
| 강조하다: | 2.0mm Enameled Flat Copper Wire,Thermal Enameled Flat Copper Wire,2mm enamelled wire |
||

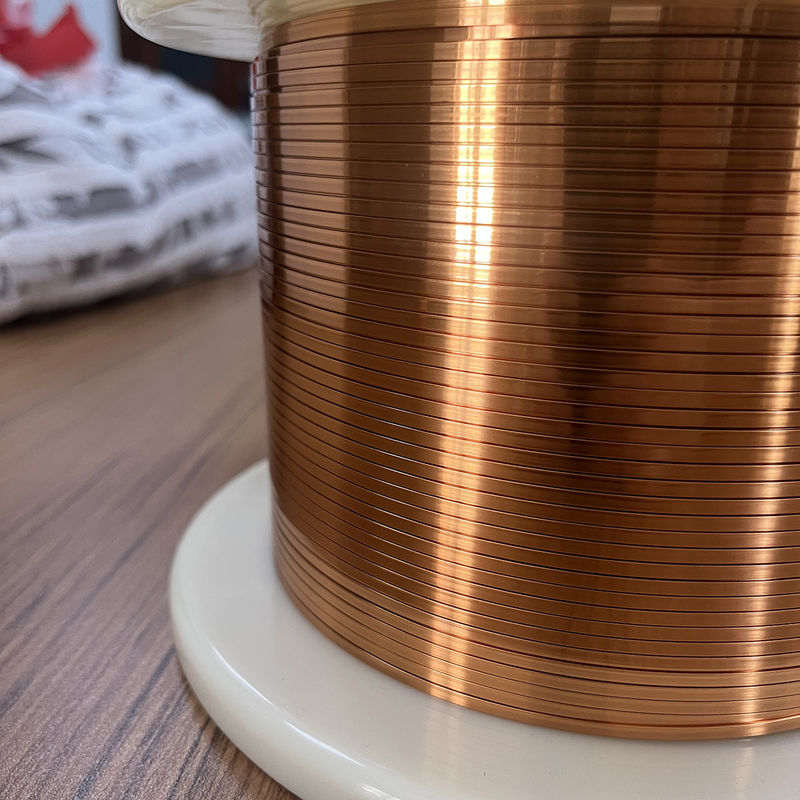

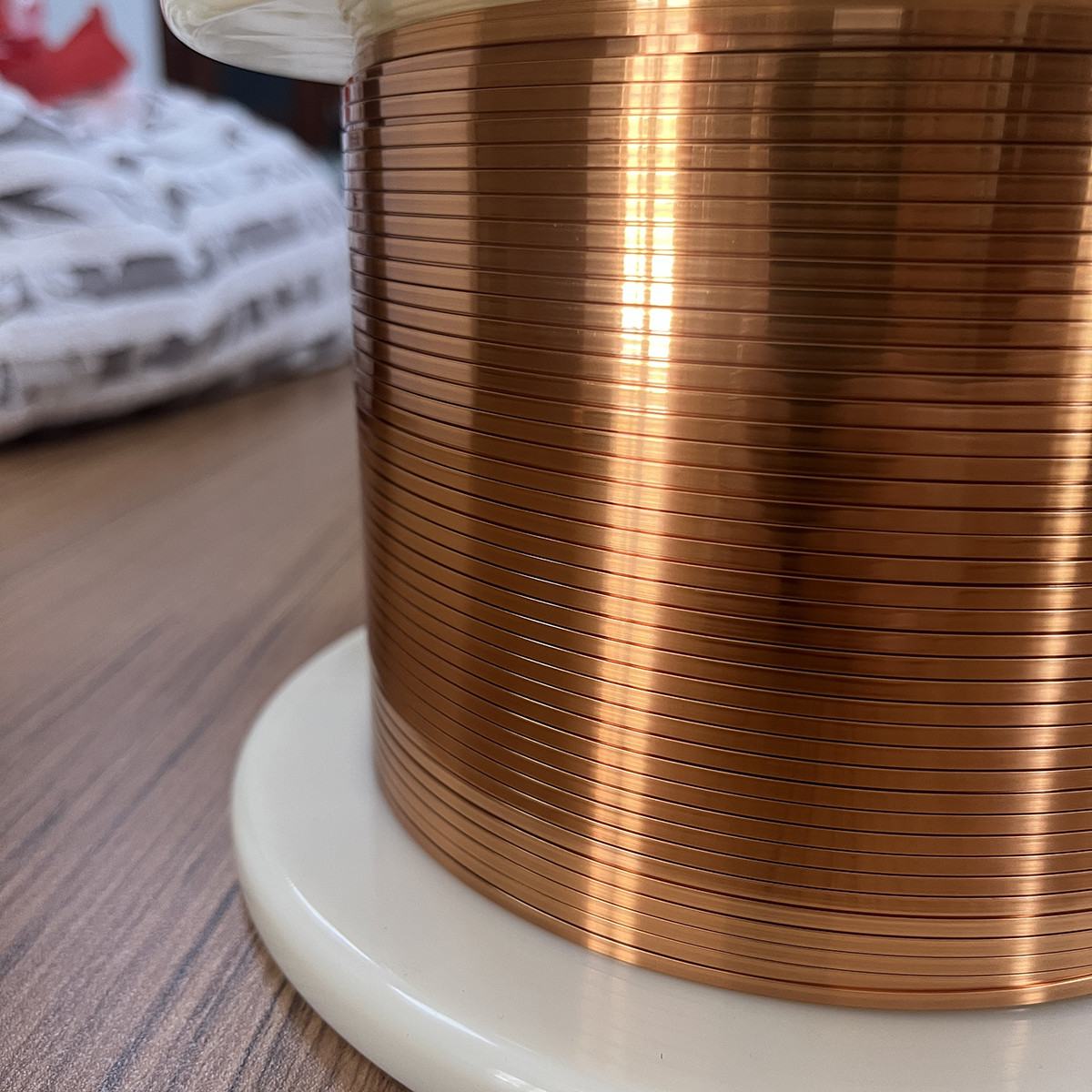

Supplies Wire Enameled Flat Copper Wire 2.0mm For Motor
Our rectangular enameled copper wires come in a wide range of sizes, allowing for flexibility in design and use. We can produce flat wires with thicknesses ranging from an extremely thin 0.03mm to a sturdy 3mm, suitable for a wide range of projects. In addition, our flat wires are available in widths up to 15mm, giving you the versatility you need for complex and large-scale applications. A 25:1 width-to-thickness ratio ensures our wires provide superior performance while maintaining structural integrity.
|
Item
|
Conductor dimension
|
Unilateral adhesive paint thickness |
Unilateral insulation layer thickness |
Overall dimension
|
Dielectric breakdown voltage
|
Conductor resistance |
||||
| Thickness | Width | Thickness | Width |
Thickness
|
Width | |||||
| Unit |
mm
|
mm
|
mm | mm | mm |
mm
|
mm
|
kv
|
Ω/km 20℃ | |
|
SPEC
|
AVE
|
0.500
|
2.000
|
/ | 0.025 | 0.025 |
/
|
/ | ||
|
Max |
0.509
|
2.060
|
/ | 0.040 | 0.040 | 0.0560 | 2.110 | 19.490 | ||
|
Min
|
0.491
|
1.940
|
0.002 | 0.010 | 0.010 |
/
|
/ | 0.700 | ||
|
No. 1
|
0.495
|
2.001 | 0.003 | 0.023 | 0.022 |
0.548
|
2.052
|
2.310 |
18.420 |
|
| No. 2 | 2.690 | |||||||||
| No. 3 | 2.520 | |||||||||
| No. 4 | 3.101 | |||||||||
| No. 5 | 3.454 | |||||||||
| No. 6 | / | |||||||||
| No. 7 | / | |||||||||
| No. 8 | / | |||||||||
| No. 9 | ||||||||||
| No. 10 | / | |||||||||
|
Avg
|
0.495
|
2.001 | 0.003 | 0.023 | 0.022 |
0.548
|
2.052 | 2.815 | ||
|
Number of reading
|
1
|
1
|
1
|
1
|
5 | |||||
|
Min. reading
|
0.495
|
2.001 | 0.003 | 0.023 | 0.022 |
0.548
|
2.052 | 2.310 | ||
|
Max. reading
|
0.495
|
2.001 | 0.003 | 0.023 | 0.022 |
0.548
|
2.052 | 3.454 | ||
|
Range
|
0.000
|
0.000
|
0.000
|
0.000
|
1.144 | |||||
|
Result
|
OK
|
OK
|
OK
|
OK
|
OK
|
OK | ||||
