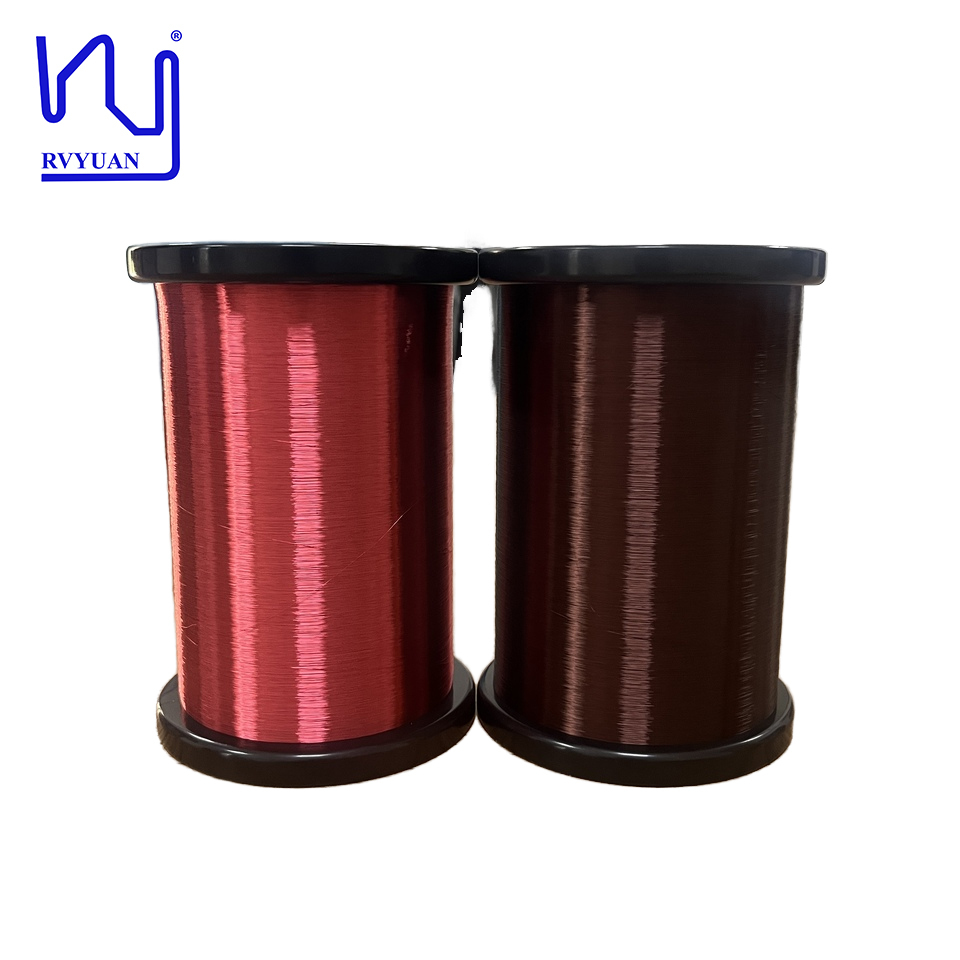

42AWG Red Color Poly Coated Magnet Wire, Polyurethane Copper Wire for Guitar

기본 정보
원래 장소: 중국
브랜드 이름: RVYUAN
인증: UL/ISO9001/ISO14001/RoHS/Reach
모델 번호: 42 AWG
최소 주문 수량: 2kg
가격: negotiable
포장 세부 사항: 판지 상자
배달 시간: 3일
지불 조건: t/t/paypal
공급 능력: 1개 톤 / 달
상세 정보
제품명: 42AWG 빨간색 폴리 코팅 자석 와이어, 기타용 폴리우레탄 구리 와이어 격리: 레드 폴리
크기: AWG42 애플리케이션: 기타 픽업 코일
MOQ: 2KG(1롤)
강조하다:

42AWG red magnet wire

,

polyurethane coated guitar wire

,

copper pickup wire for guitar


제품 설명

42AWG Red Color Poly Coated Magnet Wire, Polyurethane Copper Wire for Guitar
42 AWG 0.063mm Plain / Heavy Formvar Enameled Copper Wire For Guitar Pickup Coils

We supply some of the world's guitar pickup craftsmen with wire custom made to order. Our Pickup Wire started with an Italian customer several years ago, after a year of R&D, and half-year blind and device test in Italy, Canada, Australia. Since launched into markets, Ruiyuan Pickup Wire won a good reputation and has been chosen by over 300 pickups clients from Europe, America, Asia, etc.

Popular insulation options
  • Plain
  • Poly
  • Heavy formvar

Customized colors and size: only 20kg you can choose your exclusive color.

Guitar pickup specialists

We mainly manufacture Plain, heavy Formvar insulation and poly insulation wire, for the simple reason that they just sound best to our ears.

  • Plain wire
  • Heavy formvar wire
  • Poly-coated wire

The thickness of the wire is usually measured in AWG, which stands for American Wire Gauge. In guitar pickups, 42 AWG is the one that's most commonly used. But wire-types measuring from 41 to 46 AWG are all being used in the construction of guitar pickups.

The most professional guitar pickup wire manufacturer, we offer formvar/plain enameled copper wire. 42awg, 43awg, 44awg. The wire is mainly used in winding guitar pickups, and is a favorite among many custom pickup shops.

42awg Heavy formvar wire
Characteristics Technical requests Test results
Conductor diameter 0.063mm±0.002 0.063mm | 0.063mm | 0.063mm
Overall dimension ≤0.074mm 0.071mm | 0.072mm | 0.073mm
Conductor resistance ≤ 5.900 Ω/m 5.478 | 5.512 | 5.482
Breakdown voltage ≥ 400 V 1768 | 1672 | 1723
42AWG Red Color Poly Coated Magnet Wire, Polyurethane Copper Wire for Guitar 0
