| Place of Origin: | China |
|---|---|
| 브랜드 이름: | Ruiyuan |
| 인증: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.18mm |
| Minimum Order Quantity: | 5 kg |
| 가격: | negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 0.1mm- 1.3mm Enameled Copper Wire Winding Wire Copper Solid | Thermal rating: | 220 |
|---|---|---|---|
| Insulation Material: | AIW | Diameter: | 0.18mm |
| Conductor material: | Copper | Key word: | 0.1mm- 1.3mm Enameled Copper Wire Winding Wire Copper Solid |

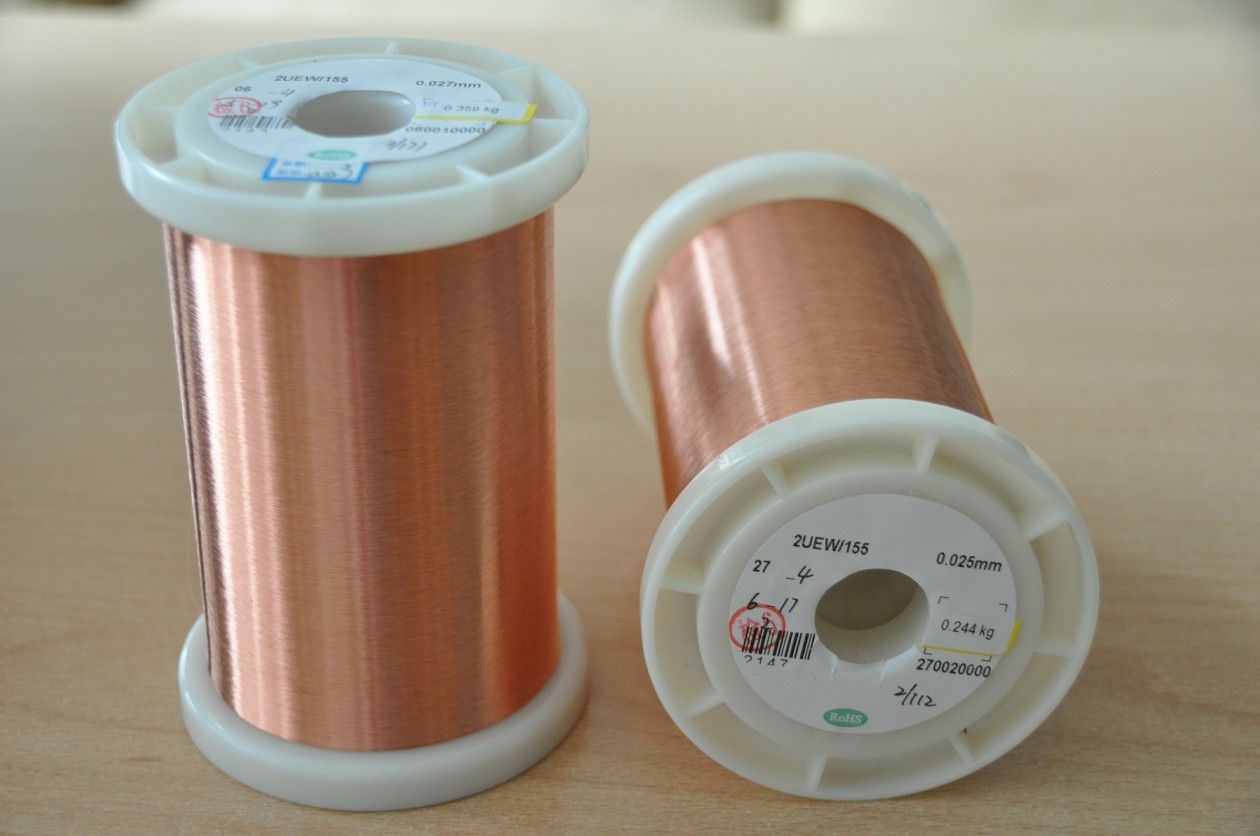

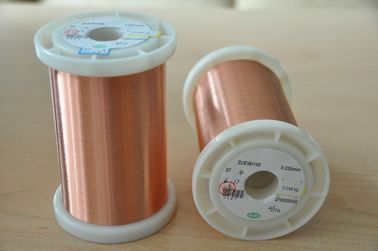

0.1mm- 1.3mm Enameled Copper Wire Winding Wire Copper Solid
Ideal for applications such as voice coil winding, this high temperature self-bonding wire is favored for its excellent conductivity and heat resistance. Its rugged construction ensures long life and reliability, making it ideal for high-performance devices. You can trust our wire to meet the needs of your most challenging projects.
| Test Items | Requirements | Test Data | Result | ||
| Min Sample |
Ave Sample |
Max Sample | |||
| Conductor Diameter | 0.18mm ±0.003mm | 0.180 | 0.180 | 0.180 | OK |
| Thickness of Insulation | ≥0.008mm | 0.019 | 0.020 | 0.020 | OK |
| Basecoat dimensions Overall dimensions | Min.0.226 | 0.210 | 0.211 | 0.212 | OK |
| Bonding film thickness | ≤ 0.004mm | 0.011 | 0.011 | 0.012 | OK |
| DC Resistance | ≤ 715Ω/km | 679 | 680 | 681 | OK |
| Elongation | ≥15% | 29 | 30 | 31 | OK |
| Breakdown Voltage | ≥2600V | 4669 | OK | ||
| Bonding Strength | Min.29.4 g | 50 | OK | ||
