3500V 2UEW-F-PET(N) 12.1mm×3.4mm Rectangular Mylar Litz Wire For Transformer

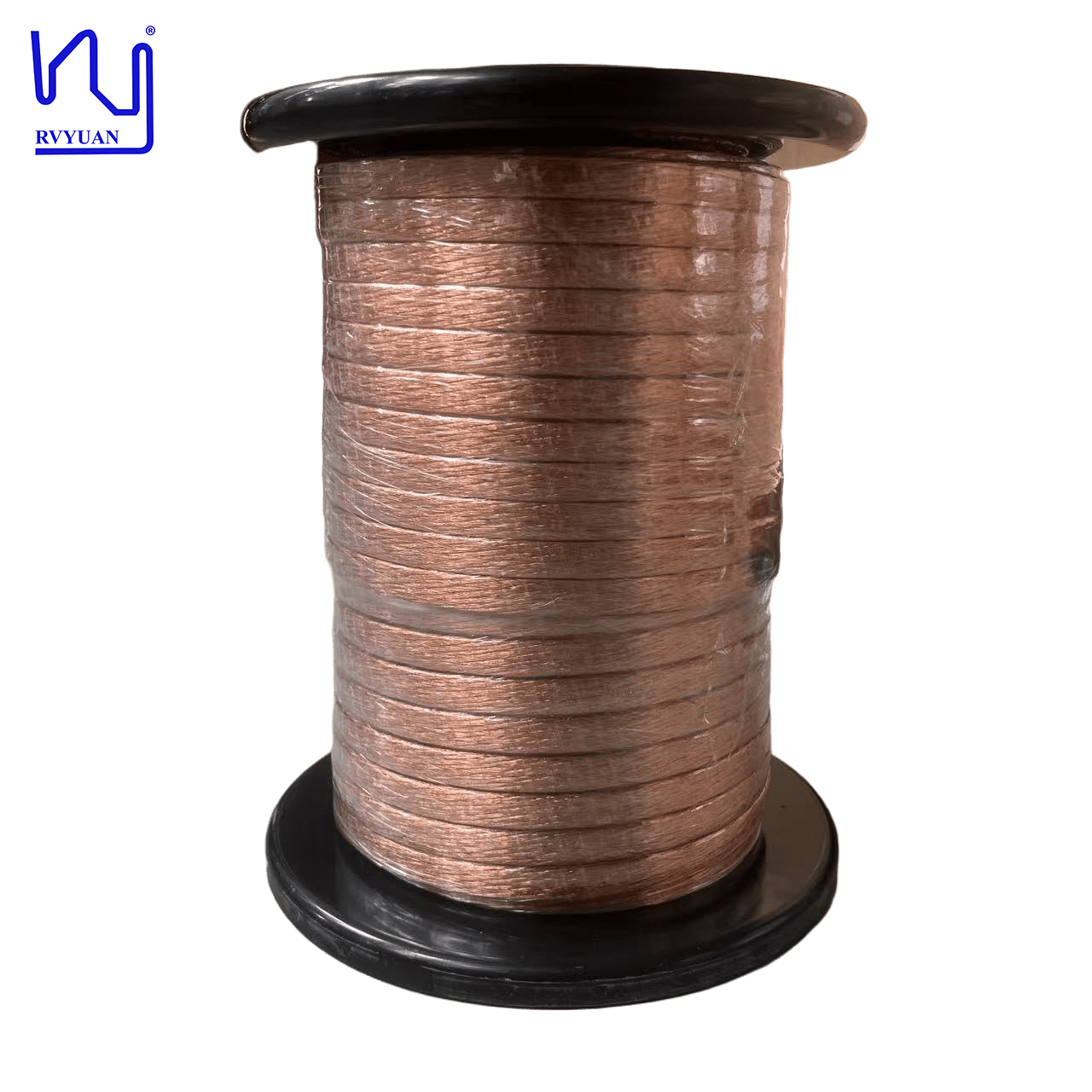

Our rectangular Mylar Litz wire is engineered for space-constrained high-frequency applications where efficiency and cost are critical. The construction begins with 0.28 mm enameled copper wire, where 300 individual wires are precisely twisted together and compressed into a flat rectangular profile measuring 12.1 mm wide by 3.4 mm thick. This creates a super high aspect ratio that maximizes conductor surface area while minimizing total height, making it ideal for compact coil constructions.
Technical Specifications
Name: Mylar Litz wire
Spec: 0.28X 300
Model: 2UEW-F-PET(N)
Tape Name: PET(N)
| Item |
Tech Requirement |
Sample 1 |
| Single Wire Diameter (mm) |
0.298-0.313 |
0.300-0.307 |
| Conductor Diameter (mm) |
0.28±0.004 |
0.277-0.279 |
| Width (mm) |
12.1±0.3 |
11.90-12.21 |
| Depth (mm) |
3.4±0.2 |
3.20-3.40 |
| Resistance (Ω/m) |
≤0.001039 |
0.000946 |
| Dielectric Strength (V) |
≥3500 |
4000 |
| Pitch (mm) |
Parallel |
Parallel |
| No. Of Strands |
300 |
15x5x4 |
| Tape Overlap (%) |
≥50 |
54 |
| Winding |
NO crack |
ok |
Applications
Typical use cases include high-frequency transformers, inductors, and power modules applied in consumer, automotive, and industrial power supplies where excellent heat dissipation is required. This Mylar Litz wire provides a comprehensive solution offering form-factor flexibility, electrical reliability, and cost-effective insulation.
