| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | RVYUAN |
| 인증: | ISO9001/ISO14001 /UL/SGS |
| 모델 번호: | USTC |
| 최소 주문 수량: | 20kg |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 판지를 가진 스풀 |
| 배달 시간: | 근무일 기준 15일 |
| 지불 조건: | T/T/페이팔 |
| 공급 능력: | 귀하의 요구를 충족 |
| 지름: | 0.05mm | 온도: | 155 |
|---|---|---|---|
| 인증: | IEC/NEMA/JIS/RoHS/ISO | 지휘자: | 구리 |
| 가닥: | 4875 | 항복 전압: | 최소 500 |

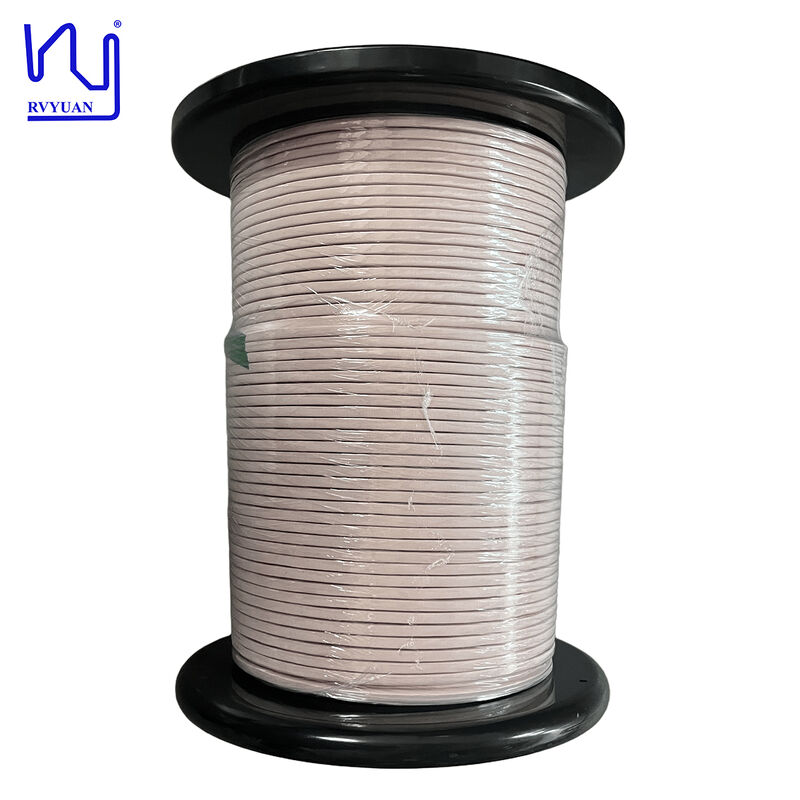

| 표지 소재: | 나일론 | 키워드: | 0.05mmx4875 변압기용 직사각형 구리 실크로 덮인 리츠 와이어 |
| 강조하다: | rectangular copper litz wire,silk covered litz wire,transformer litz wire |
||
This flat nylon serving litz wire is specifically designed for use in transformer windings. It is ideal for high-frequency transformers used in power electronics, such as those found in electric vehicle chargers, renewable energy systems, and switching power supplies. By reducing AC losses and enhancing thermal performance, this wire contributes to higher efficiency, reliability, and compactness in advanced transformer designs.
| Type Conductor diameter*Strand number | 2USTC-H 0.05*4875(4.5*4.4) |
|---|---|
| Single wire (strand) conductor diameter (mm) | 0.050±0.003 |
| Overall diameter (mm) | 0.055-0.069 |
| Thermal Class (°C) | 180 |
| Strands number | First time | 39 |
|---|---|---|
| Second time | 39×5 | |
| Third time | 39×5×5 | |
| Fourth time | 39×5×5×5 |
| Pitch (mm) | First time | 16±8 |
|---|---|---|
| Second time | 25±10 | |
| Third time | 35±10 | |
| Fourth time | 65±10 | |
| Bunching direction | S/S/S/S | |
| Material type | Nylon |
|---|---|
| Material specs (mm×mm or D) | / |
| Times of Wrapping | 1 |
| Overlap (%) or thickness (mm), mini | 0.045 |
| Wrapping direction | Z |
| Width (mm) | 4.5±0.2 |
|---|---|
| Thickness (mm) | 4.4±0.2 |
| Max resistance (Ω/Km at 20°C) | 2.227 |
| Breakdown voltage Mini (V) | 500 |
