| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | RVYUAN |
| 인증: | ISO9001/ISO14001 /UL/SGS |
| 모델 번호: | USTC |
| 최소 주문 수량: | 20kg |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 판지를 가진 스풀 |
| 배달 시간: | 근무일 기준 15일 |
| 지불 조건: | T/T/페이팔 |
| 공급 능력: | 귀하의 요구를 충족 |
| 지름: | 0.2mm | 온도: | 155 |
|---|---|---|---|
| 인증: | IEC/NEMA/JIS/RoHS/ISO | 지휘자: | 구리 |
| 가닥: | 1300 | 항복 전압: | 최소 1600 |
| 표지 소재: | 나일론 | 키워드: | 리츠 와이어 실크 피복 구리 절연 가열 에나멜 연선 QA-1 0.2mm |
| 강조하다: | silk covered copper litz wire,QA-1 enameled stranded wire,0.2mm insulated heating wire |
||

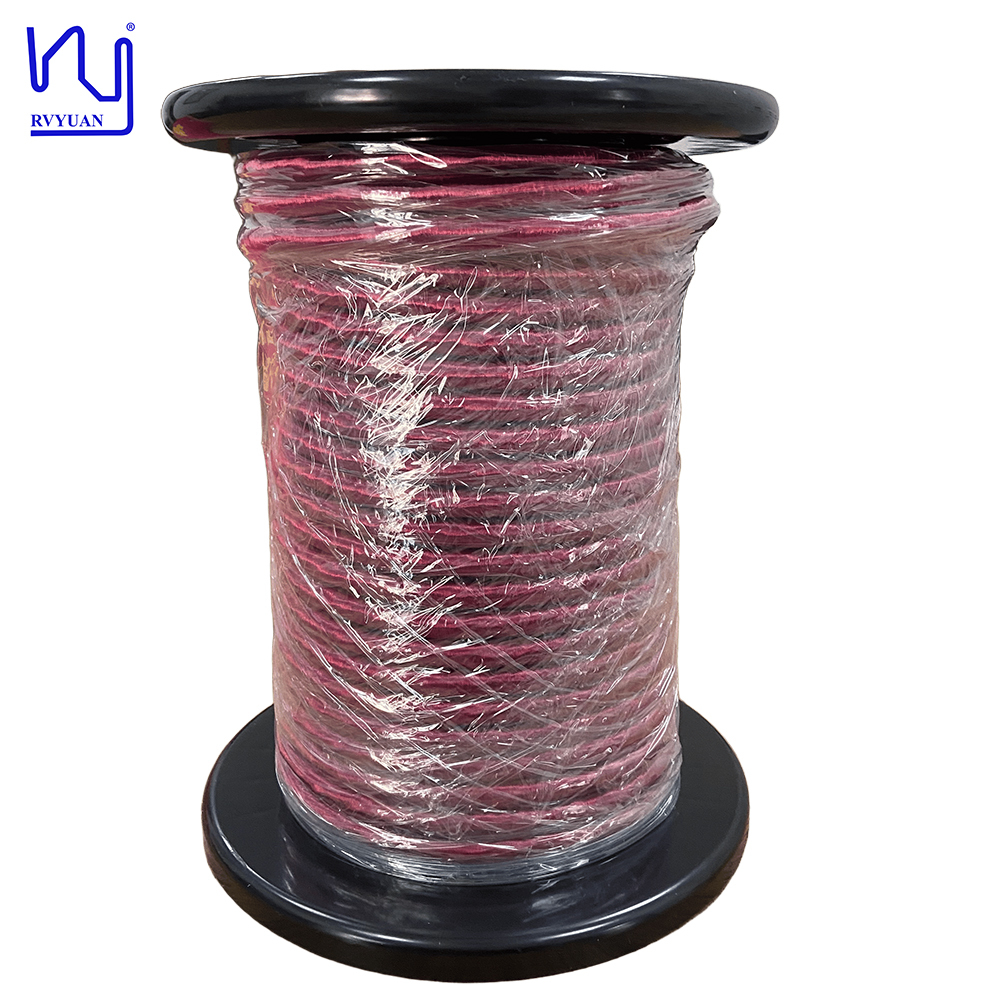

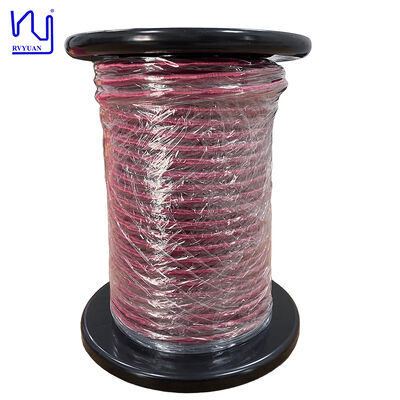

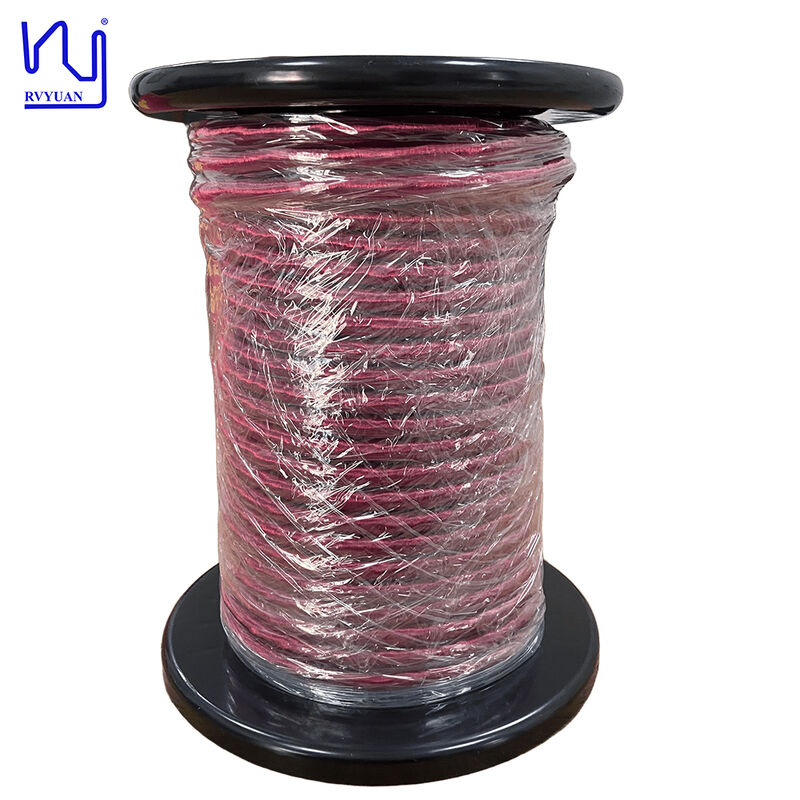

2UDTC-F 0.2mm Silk covered Copper Litz Wire featuring a distinctive pink polyester yarn wrapping. This premium litz wire is constructed from 1300 strands of 0.2mm enameled copper wire, meticulously twisted and wrapped with durable dacron yarn.
The pink polyester yarn was custom-developed for specific client requirements. We offer custom colored yarn wrapping options - please contact us to discuss your specific needs.
| Item No. | Diameter of Single Wire (mm) | Conductor Diameter (mm) | Overall Dimension (mm) | Resistance (Ω/m) | Breakdown Voltage (V) | Pitch |
|---|---|---|---|---|---|---|
| Tech Requirement | 0.216-0.231 | 0.2±0.003 | Max. 11.09 | ≤0.000444 | ≥1600 | 78±10 |
| Sample 1 | 0.220-0.223 | 0.198-0.20 | 9.78-10.25 | 0.0000421 | 2800 | √ |
Minimum order quantity: 30 kg. We welcome sample requests for evaluation purposes. Experience the superior quality and performance of our silk covered litz wire in your next design project.
All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
