PET/PI Taped Litz Wire 0.2mm 80 Strands Copper Wire Insulated

기본 정보
원래 장소: 중국
브랜드 이름: Rvyuan
인증: IEC/NEMA/JIS/RoHS/ISO
모델 번호: 녹화된 리츠 와이어
최소 주문 수량: 20kg
가격: negotiable
포장 세부 사항: 상자와 스풀
배달 시간: 2-15 근로 일
지불 조건: 협상
공급 능력: 당신의 요구를 충족시킵니다
상세 정보
이름: PET/PI 테이프 리츠 와이어 0.2mm 80 가닥 구리 와이어 절연 인증: ISO9001/ISO14001/UL/SGS
지름: 0.2mm 지휘자: 구리
격리: PI는 영화화됩니다 정격 온도: 155
키워드: PET/PI 테이프 리츠 와이어 0.2mm 80 가닥 구리 와이어 절연 가닥의 수: 80
강조하다:

PET PI taped Litz wire

,

0.2mm 80 strands copper wire

,

insulated copper Litz wire


제품 설명

PET/PI Taped Litz Wire 0.2mm 80 Strands Copper Wire Insulated
The design of Litz wire is crucial for minimizing skin and proximity losses, which are common in high-frequency applications. By employing multi-strand strands, polyester film Litz wire ensures efficient conductivity while maintaining flexibility. The enameled copper core provides excellent electrical insulation, guaranteeing safe and reliable operation.
Technical Specifications
Item No. Our diameter of single wire mm Conductor diameter mm Overall dimension mm Resistance Ω/m Breakdown voltage V Overlap%
Tech requirement 0.213-0.227 0.2±0.003 Max.2.84 ≤0.007215 4000 Min. 50
Sample 1 0.220-0.223 0.198-0.2 2.46-2.73 0.006814 11700 53

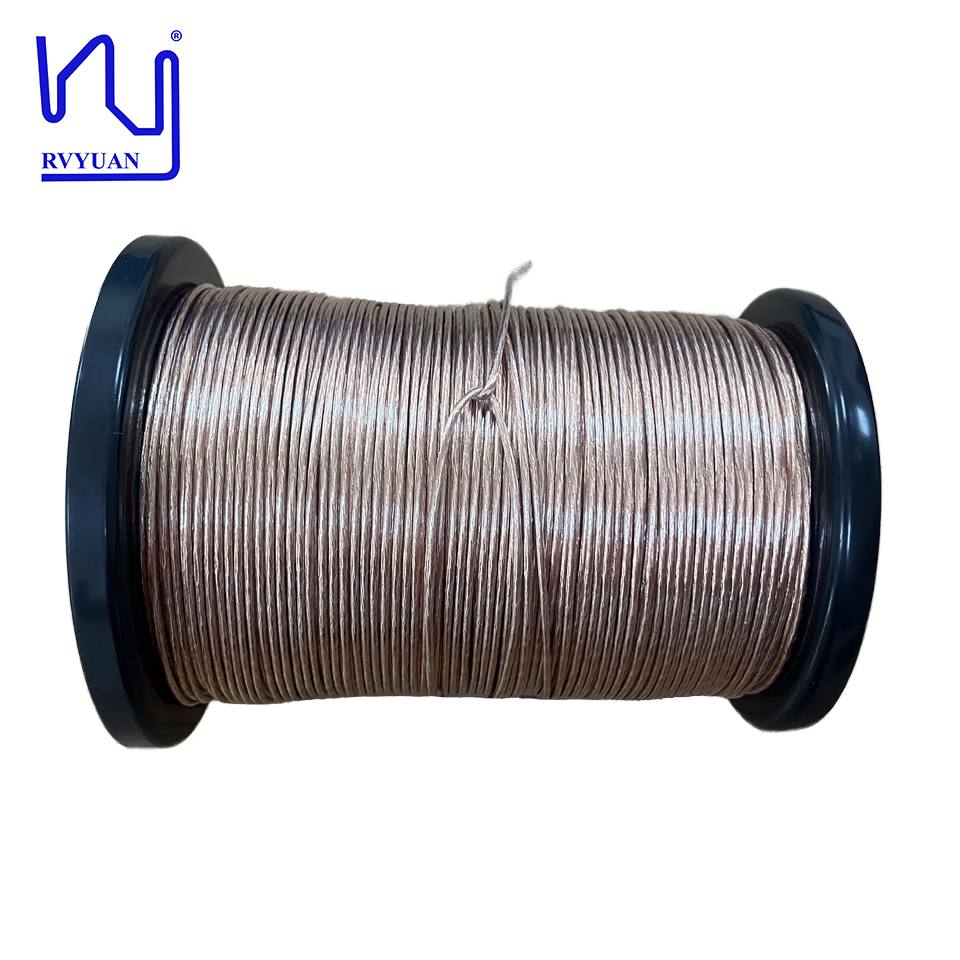

Product Images
PET/PI Taped Litz Wire 0.2mm 80 Strands Copper Wire Insulated 0
