UL Safety 0.1mmX250 Strands TIW Litz Wire ETFE Extruded Coating

기본 정보
원래 장소: 중국
브랜드 이름: RVYUAN
인증: UL/ISO9001/ISO14001/RoHS/Reach
모델 번호: 0.1mm
최소 주문 수량: 1000미터
가격: negotiable
포장 세부 사항: 판지 상자
배달 시간: 7 일
지불 조건: t/t/paypal
공급 능력: 1개 톤 / 달
상세 정보
제품 이름: ul Safety 0.1mmx250 가닥 tiw litz 와이어 etfe 압출 코팅 열 평가: 155
단일 와이어 직경: 0.1mm 도체 자료: 구리
가닥의 수: 250 내부: ETFE
강조하다:

UL safety Litz wire ETFE coating

,

TIW Litz wire 250 strands

,

ETFE extruded triple insulated wire


제품 설명

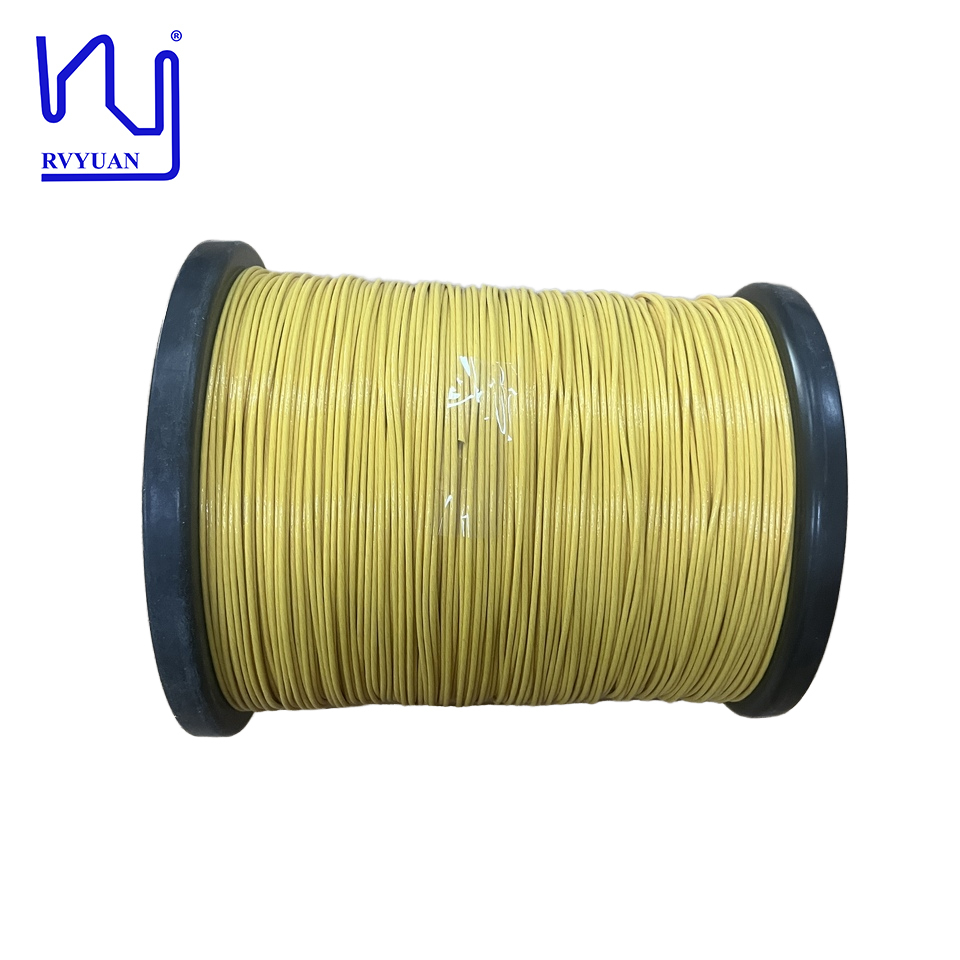

UL Safety 0.1mmX250 Strands TIW Litz Wire ETFE Extruded Coating
The combination of these properties makes ETFE insulated litz wire particularly suitable for high-frequency transformer winding applications where reliability and performance are critical. Its lightweight and flexible design, coupled with its excellent electrical performance, makes it the first choice for engineers and designers seeking efficient high-frequency wiring solutions.
Product Specifications
Characteristics Technical Requests Sample 1 Sample 2 Sample 3 Conclusion
Appearance Smooth & Clean OK OK OK OK
Diameter of single wire 0.10±0.003mm 0.100 0.100 0.099 OK
Thickness of Enamel ≥ 0.004mm 0.006 0.007 0.008 OK
OD of single wire 0.105-0.109mm 0.106 0.107 0.107 OK
Twist Pitch S28±2 OK OK OK OK
Insulation Thickness Min.0.1mm 0.12 0.12 0.12 OK
OD of Litz Wire Max. 2.2mm 2.16 2.16 2.12 OK
DC Resistance Max.9.81 Ω/km 9.1 9.06 9.15 OK
Elongation ≥ 13 % 23.1 21.9 22.4 OK
Breakdown Voltage ≥ 5K V 8.72 9.12 8.76 OK
Pin Hole 0 hole/5m 0 0 0 OK
UL Safety 0.1mmX250 Strands TIW Litz Wire ETFE Extruded Coating 0
Customization & Support
We support small batch customization with a minimum order quantity of 1000 meters. Our professional team provides technical support and custom specifications are available upon request.
