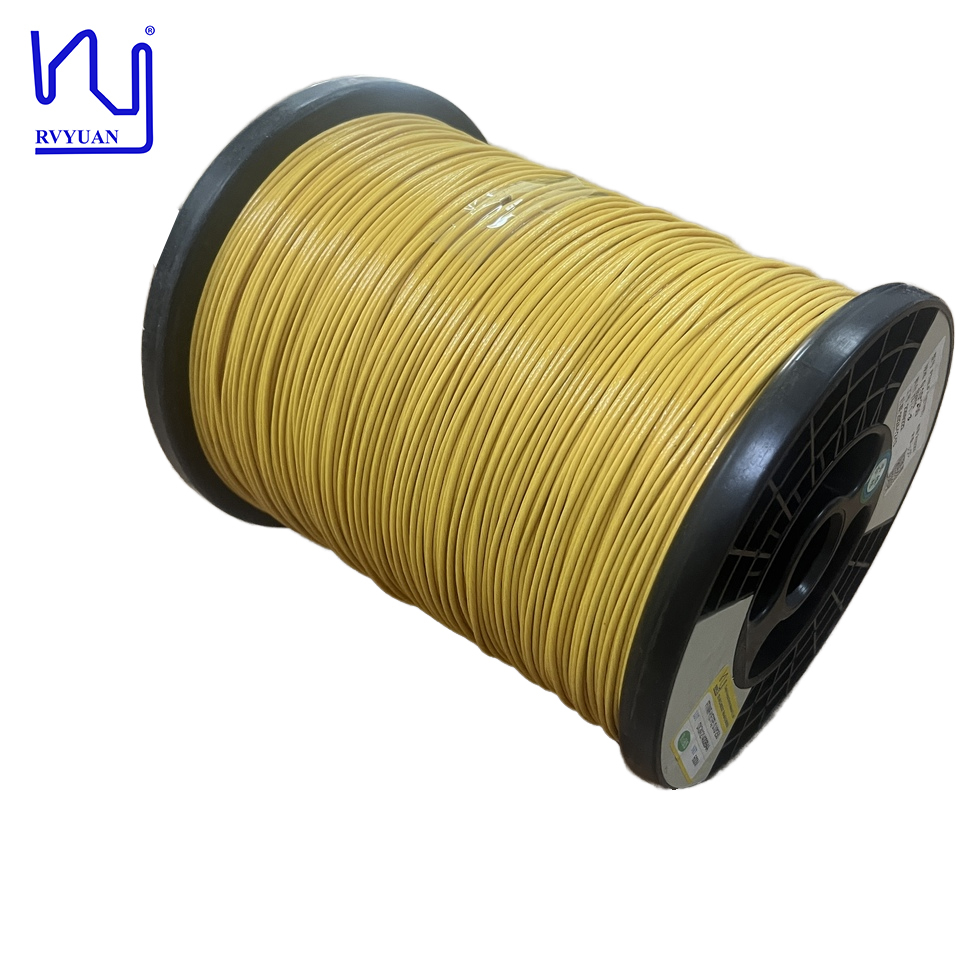

Triple insulated wire 155℃ 0.1mm*250 ETFE/PTFE Copper Litz Wire For Transformer

기본 정보
원래 장소: 중국
브랜드 이름: RVYUAN
인증: UL/ISO9001/ISO14001/RoHS/Reach
모델 번호: 0.1mm
최소 주문 수량: 1000미터
가격: negotiable
포장 세부 사항: 판지 상자
배달 시간: 7 일
지불 조건: t/t/paypal
공급 능력: 1개 톤 / 달
상세 정보
제품 이름: 트리플 절연 와이어 155 ℃ 0.1mm*250 ETFE/PTFE 구리 LITZ 변압기 와이어 열 평가: 155
단일 와이어 직경: 0.1mm 도체 자료: 구리
가닥의 수: 250 내부: ETFE
강조하다:

Triple insulated ETFE PTFE wire

,

155℃ high temperature Litz wire

,

0.1mm transformer copper wire


제품 설명

Triple insulated wire 155℃ 0.1mm*250 ETFE/PTFE Copper Litz Wire For Transformer
The conductors are insulated with ETFE (ethylene tetrafluoroethylene), a high-performance polymer known for its excellent heat and chemical resistance. ETFE is rated for temperatures up to 155°C, ensuring the conductors perform effectively in a variety of harsh conditions. The thinner walls of the winding wires allow for efficient use of space, making them particularly suitable for primary applications in multi-conductor configurations.
Technical Specifications
Characteristics Technical Requests Sample 1 Sample 2 Sample 3 Conclusion
Appearance Smooth & Clean OK OK OK OK
Diameter of single wire 0.10±0.003mm 0.100 0.100 0.099 OK
Thickness of Enamel ≥ 0.004mm 0.006 0.007 0.008 OK
OD of single wire 0.105-0.109mm 0.106 0.107 0.107 OK
Twist Pitch S28±2 OK OK OK OK
Insulation Thickness Min.0.1mm 0.12 0.12 0.12 OK
OD of Litz Wire Max. 2.2mm 2.16 2.16 2.12 OK
DC Resistance Max.9.81 Ω/km 9.1 9.06 9.15 OK
Elongation ≥ 13 % 23.1 21.9 22.4 OK
Breakdown Voltage ≥ 5K V 8.72 9.12 8.76 OK
Pin Hole 0 hole/5m 0 0 0 OK
Triple insulated wire 155℃ 0.1mm*250 ETFE/PTFE Copper Litz Wire For Transformer 0
We have a professional team to provide technical support. Custom specifications available upon request.
