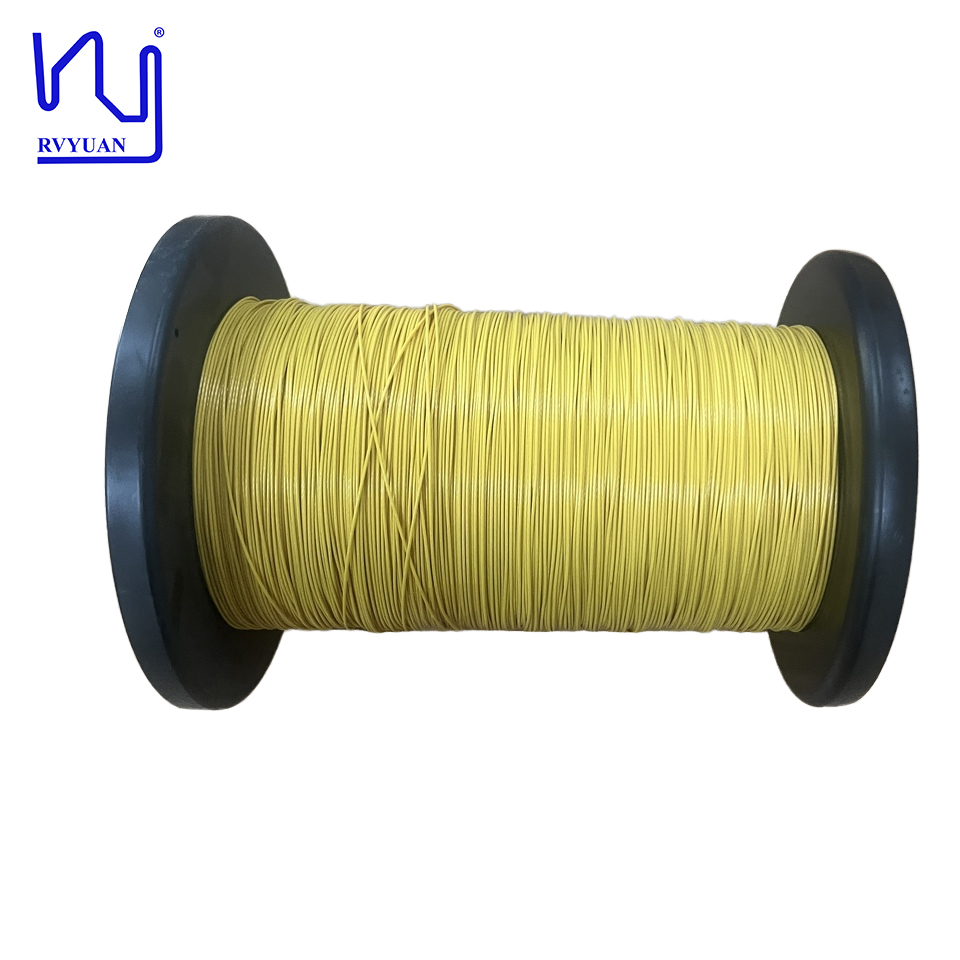

ETFE Insulation 0.21mm 0.24mm 0.27mm TIW Insulated Copper Litz Wire

기본 정보
원래 장소: 중국
브랜드 이름: RVYUAN
인증: UL/ISO9001/ISO14001/RoHS/Reach
모델 번호: 0.27 밀리미터
최소 주문 수량: 1000미터
가격: negotiable
포장 세부 사항: 판지 상자
배달 시간: 7 일
지불 조건: t/t/paypal
공급 능력: 1개 톤 / 달
상세 정보
제품 이름: ETFE 절연 0.21mm 0.24mm 0.27mm TIW 단열 구리 Litz 와이어 열 평가: 155
단일 와이어 직경: 0.27 밀리미터 도체 자료: 구리
가닥의 수: 7 내부: ETFE
강조하다:

ETFE insulated copper litz wire

,

TIW insulated litz wire

,

0.27mm copper litz wire


제품 설명

ETFE Insulation 0.21mm 0.24mm 0.27mm TIW Insulated Copper Litz Wire
ETFE Insulation 0.21mm 0.24mm 0.27mm TIW Insulated Copper Litz Wire
Construction
  • Individual copper strands are insulated, often with a lacquer coating.
  • These strands are then twisted or bundled together to form the Litz structure.
  • An extruded, continuous layer of ETFE is applied to the outside of the twisted bundle for protection and enhanced insulation.
Specifications
Characteristics Test Standard Test result
Outer diameter of single wire 0.295mm 0.288 | 0.287 | 0.287
Min. insulation thickness /Mm(min) 0.019 | 0.018 | 0.019
Pitch S12±2 ok | ok | ok
Single wire Diameter 0.27±0.004MM 0.269 | 0.269 | 0.268
Overall dimension 1.06-1.2mm(Max) 1.078 | 1.088 | 1.085
Conductor Resistance Max. 45.23Ω/KM(max) 44.82 | 44.73 | 44.81
Breakdown voltage Min. 6KV(min) 15 | 14.5 | 14.9
Solder ability 450℃ 3Secs OK | OK | OK
Conclusion Qualified
ETFE Insulation 0.21mm 0.24mm 0.27mm TIW Insulated Copper Litz Wire 0
We have a professional team to provide technical support. Custom specifications available upon request.
