| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | RVYUAN |
| 인증: | UL/ISO9001/ISO14001/RoHS/Reach |
| 모델 번호: | 0.27 밀리미터 |
| 최소 주문 수량: | 1000미터 |
| 가격: | negotiable |
| 포장 세부 사항: | 판지 상자 |
| 배달 시간: | 7 일 |
| 지불 조건: | t/t/paypal |
| 공급 능력: | 1개 톤 / 달 |
| 제품 이름: | 커스텀 클래스 155 7 가닥 압출 ETFE 단열 구리 Litz 와이어 | 열 평가: | 155 |
|---|---|---|---|
| 단일 와이어 직경: | 0.27 밀리미터 | 도체 자료: | 구리 |
| 가닥의 수: | 7 | 내부: | ETFE |
| 강조하다: | Custom Class 155 Litz Wire,7 Strands ETFE Insulation Wire,Extruded Copper Litz Wire |
||

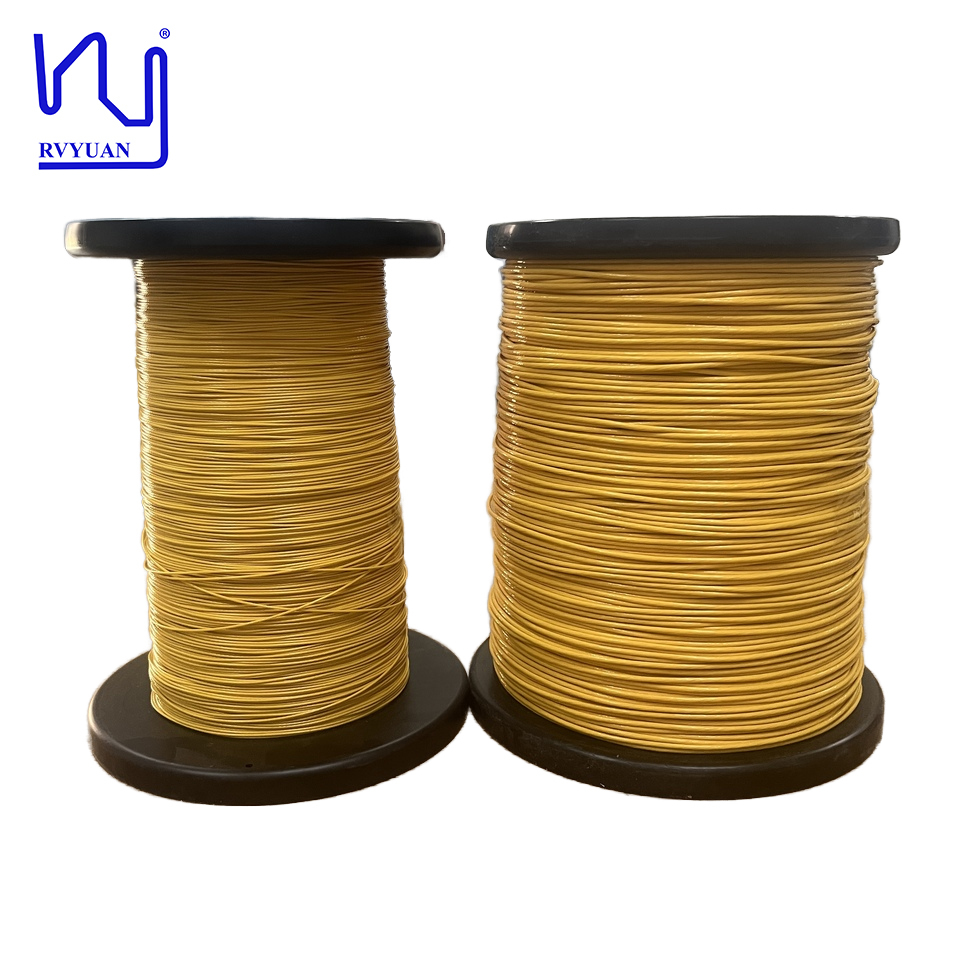

Custom Class 155 7 Strands Extruded ETFE Insulation Copper Litz Wire
A cable composed of multiple strands of insulated wire, twisted or braided together in a specific configuration to reduce AC resistance, particularly at high frequencies.
Ethylene Tetrafluoroethylene, a fluoropolymer known for its high dielectric strength, excellent thermal stability, resistance to chemicals and UV radiation, and low friction properties.
| Characteristics | Test Standard | Test result |
|---|---|---|
| Outer diameter of single wire | 0.295mm | 0.288 | 0.287 | 0.287 |
| Min. insulation thickness | /Mm(min) | 0.019 | 0.018 | 0.019 |
| Pitch | S12±2 | ok | ok | ok |
| Single wire Diameter | 0.27±0.004MM | 0.269 | 0.269 | 0.268 |
| Overall dimension | 1.06-1.2mm(Max) | 1.078 | 1.088 | 1.085 |
| Conductor Resistance | Max. 45.23Ω/KM(max) | 44.82 | 44.73 | 44.81 |
| Breakdown voltage | Min. 6KV(min) | 15 | 14.5 | 14.9 |
| Solder ability | 450℃ 3Secs | OK | OK | OK |
| Conclusion | Qualified |
We have a professional team to provide technical support. Custom specifications available upon request.
