Custom litz wire 2-13000 Strands Copper Stranding Wire for Transformer

기본 정보
원래 장소: 중국
브랜드 이름: RVYUAN
인증: ISO9001/ISO14001 /UL/SGS
모델 번호: USTC
최소 주문 수량: 10kg
가격: negotiable
포장 세부 사항: 상자와 스풀
배달 시간: 2-15 근로 일
지불 조건: t/ t/ paypal
공급 능력: 당신의 요구를 충족시킵니다
상세 정보
지름: 0.071mm 온도: 155
인증: IEC/NEMA/JIS/RoHS/ISO 지휘자: 구리
가닥: 250 고장 전압: 1300
격리: uew 제품 이름: 맞춤형 LITZ 와이어 2-13000 스트랜드 변압기 용 구리 가닥 와이어
핵심 단어: 맞춤형 LITZ 와이어 2-13000 스트랜드 변압기 용 구리 가닥 와이어
강조하다:

custom litz wire for transformer

,

copper stranding litz wire

,

13000 strands litz wire


제품 설명

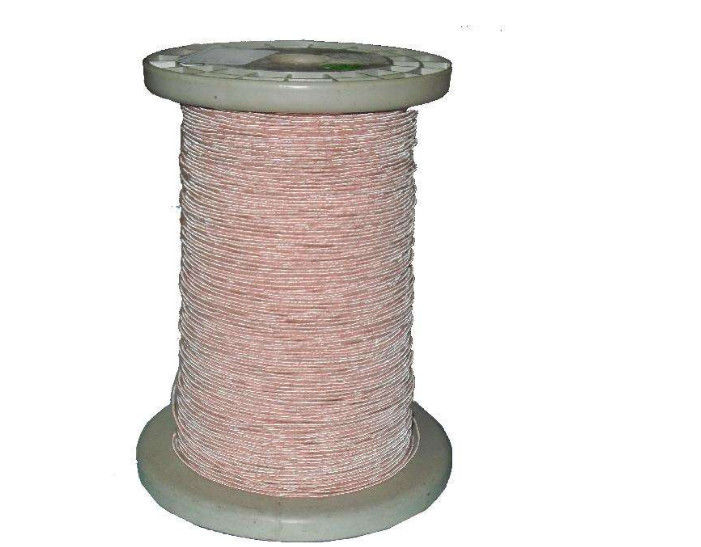

Custom Litz Wire 2-13000 Strands Copper Stranding Wire for Transformer

Our company offers a variety of custom litz wire solutions to meet your specific needs. We offer single wire sizes ranging from 0.025 mm to 0.5 mm, with strand counts ranging from single to 13,000 strands.

In addition to stranded wire, we also offer various types of stranded wire with cover, including:

  • Nylon served litz wire
  • Taped litz wire
  • Flat nylon severed and taped litz wire

Our products are designed to meet the unique needs of your application, ensuring optimal performance and efficiency. With an emphasis on quality and customization, we work closely with our customers to provide litz wire solutions that perfectly fit their systems.

Product Specifications
Attribute Value
Diameter 0.071mm
Temperature 155
Certification IEC/NEMA/JIS/RoHS/ISO
Conductor Copper
Strands 250
Breakdown voltage 1300
Insulation UEW
Technical Specifications
Item Technical requests Test value 1 Test value 2
Conductor Diameter (mm) 0.076-0.084 0.079 0.080
Single wire diameter (mm) 0.071±0.003 0.068 0.070
O.D. (mm) Max. 1.85 1.57 1.68
Resistance Ω/m (20℃) Max. 0.01196 0.01815 0.01812
Breakdown Voltage V 950 3100 3000
Pitch mm 29± 5
No. of strands 250

Explore the endless possibilities of our natural silk-covered litz wire and experience the extraordinary experience of working with a trusted industry leader. Contact us today to discuss your needs and let us create the perfect wire solution for your next project.
