Customized silk covered litz wire 0.025mm-0.5mm Stranded Copper Litz Wire for Transformer

기본 정보
원래 장소: 중국
브랜드 이름: RVYUAN
인증: ISO9001/ISO14001 /UL/SGS
모델 번호: USTC
최소 주문 수량: 10kg
가격: negotiable
포장 세부 사항: 상자와 스풀
배달 시간: 2-15 근로 일
지불 조건: t/ t/ paypal
공급 능력: 당신의 요구를 충족시킵니다
상세 정보
지름: 0.071mm 온도: 155
인증: IEC/NEMA/JIS/RoHS/ISO 지휘자: 구리
가닥: 250 고장 전압: 1300
격리: uew 제품 이름: 맞춤형 실크 커버 리츠 와이어 0.025mm-0.5mm 스트레드 구리 Litz 와이어 변압기
핵심 단어: 맞춤형 실크 커버 리츠 와이어 0.025mm-0.5mm 스트레드 구리 Litz 와이어 변압기
강조하다:

custom silk litz wire

,

stranded copper litz wire

,

transformer litz wire


제품 설명

Customized Silk Covered Litz Wire 0.025mm-0.5mm Stranded Copper Litz Wire for Transformer
Our company specializes in providing custom silk covered litz wire, with single wire sizes ranging from 0.025mm to 0.5mm. We offer a wide range of strand counts, from single-strand to 13,000 strands, ensuring that we can meet your specific needs. In addition to silk-covered litz wire, we also supply taped litz wire and flat taped litz wire. Our products are meticulously crafted to meet your system requirements, ensuring optimal performance and reliability. With a commitment to quality and customization, we work closely with our clients to deliver litz wire solutions that perfectly align with their applications. Trust us to provide the ideal litz wire tailored to your specifications.
Product Specifications
Attribute Value
Diameter 0.071mm
Temperature 155
Certification IEC/NEMA/JIS/RoHS/ISO
Conductor Copper
Strands 250
Breakdown voltage 1300
Insulation UEW
Technical Specifications
Item Technical requests Test value 1 Test value 2
Conductor Diameter (mm) 0.076-0.084 0.079 0.080
Single wire diameter (mm) 0.071±0.003 0.068 0.070
O.D. (mm) Max. 1.85 1.57 1.68
Resistance Ω/m (20℃) Max. 0.01196 0.01815 0.01812
Breakdown Voltage V 950 3100 3000
Pitch mm 29± 5
No. of strands 250
Explore the endless possibilities of our natural silk-covered litz wire and experience the extraordinary experience of working with a trusted industry leader. Contact us today to discuss your needs and let us create the perfect wire solution for your next project.

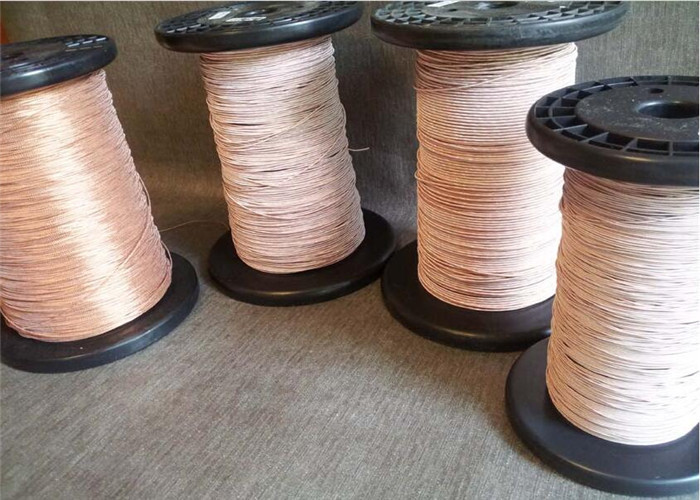

Customized silk covered litz wire 0.025mm-0.5mm Stranded Copper Litz Wire for Transformer 0
