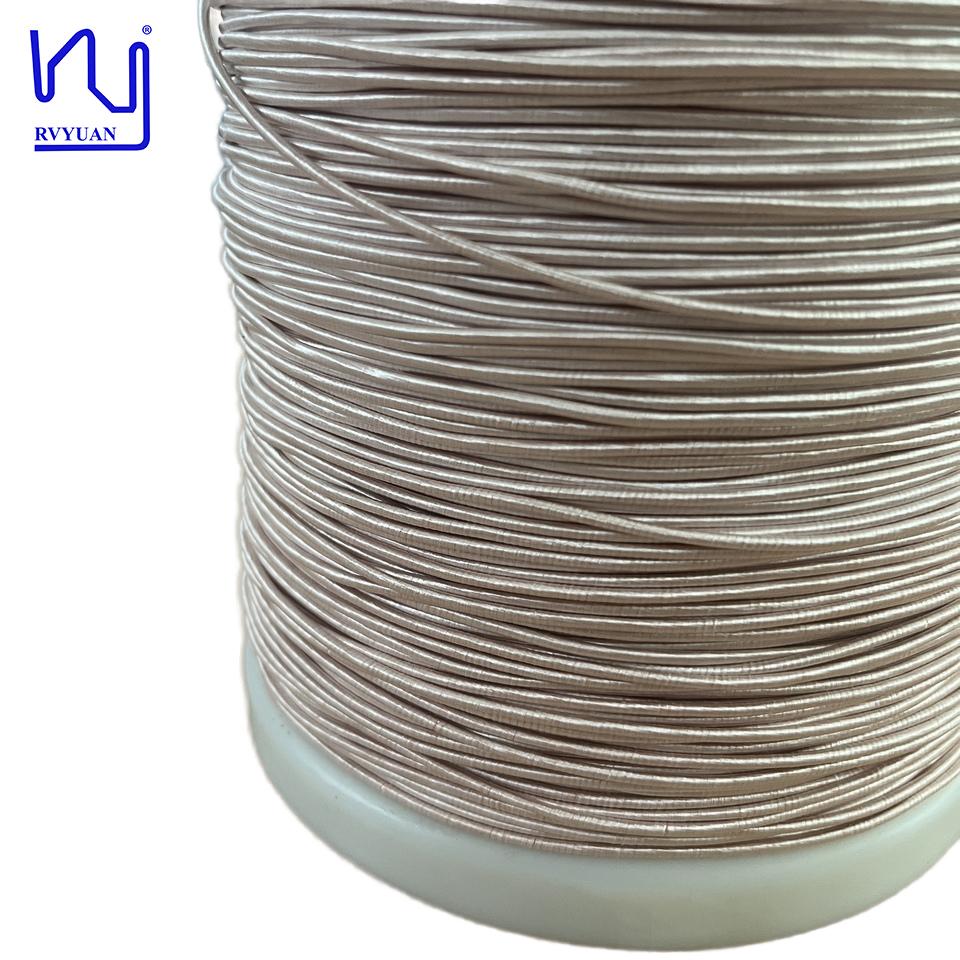

USTC Litz Wire 0.071mmx250 Natural Silk Covered Litz Wire

기본 정보
원래 장소: 중국
브랜드 이름: RVYUAN
인증: ISO9001/ISO14001 /UL/SGS
모델 번호: USTC
최소 주문 수량: 10kg
가격: negotiable
포장 세부 사항: 상자와 스풀
배달 시간: 2-15 근로 일
지불 조건: t/ t/ paypal
공급 능력: 당신의 요구를 충족시킵니다
상세 정보
지름: 0.071mm 온도: 155
인증: IEC/NEMA/JIS/RoHS/ISO 지휘자: 구리
가닥: 250 고장 전압: 1300
격리: uew 제품 이름: USTC litz 와이어 0.071mmx250 천연 실크 커버 리츠 와이어
핵심 단어: USTC litz 와이어 0.071mmx250 천연 실크 커버 리츠 와이어
강조하다:

natural silk covered litz wire

,

0.071mm litz wire with silk

,

ustc litz wire 250 strands


제품 설명

USTC Litz Wire 0.071mmx250 Natural Silk Covered Litz Wire
The unique construction of silk covered litz wire provides excellent conductivity and effectively reduces skin effect, making it ideal for high-frequency applications. In transformer winding, the wire's flexibility and durability ensure it withstands the rigors of continuous operation while maintaining optimal performance. Furthermore, the natural silk covering provides excellent insulation, further enhancing the wire's performance in harsh environments. Whether you're designing a new transformer or developing a high-fidelity audio system, the silk covered litz wire delivers exceptional performance.
Product Specifications
Attribute Value
Diameter 0.071mm
Temperature 155
Certification IEC/NEMA/JIS/RoHS/ISO
Conductor Copper
Strands 250
Breakdown voltage 1300
Insulation UEW
Technical Specifications
Item Technical requests Test value 1 Test value 2
Conductor Diameter (mm) 0.076-0.084 0.079 0.080
Single wire diameter (mm) 0.071±0.003 0.068 0.070
O.D. (mm) Max. 1.85 1.57 1.68
Resistance Ω/m (20℃) Max. 0.01196 0.01815 0.01812
Breakdown Voltage V 950 3100 3000
Pitch mm 29± 5
No. of strands 250
USTC Litz Wire 0.071mmx250 Natural Silk Covered Litz Wire 0
