| Place of Origin: | China |
|---|---|
| 브랜드 이름: | RVYUAN |
| 인증: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.019mm |
| Minimum Order Quantity: | 0.5kg |
| 가격: | negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 2UEW-F 0.019mm Super Thin Enamelled Copper Wire For Watch coils | Thermal rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.019mm |
| Conductor material: | Copper | Key word: | 2UEW-F 0.019mm Super Thin Enamelled Copper Wire For Watch coils |
| Type: | 2UEW-F 0.019mm Super Thin Enamelled Copper Wire For Watch coils | ||
| 강조하다: | 2UEW-F Enamelled Copper Wire,Watch Coils Enamelled Copper Wire,Super Thin Enamelled Copper Wire |
||

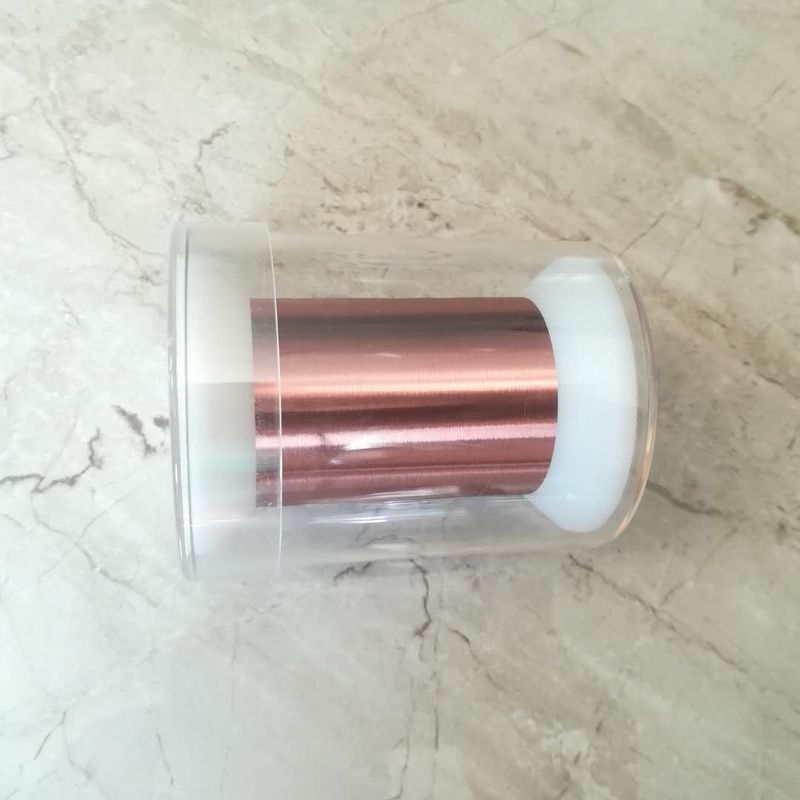

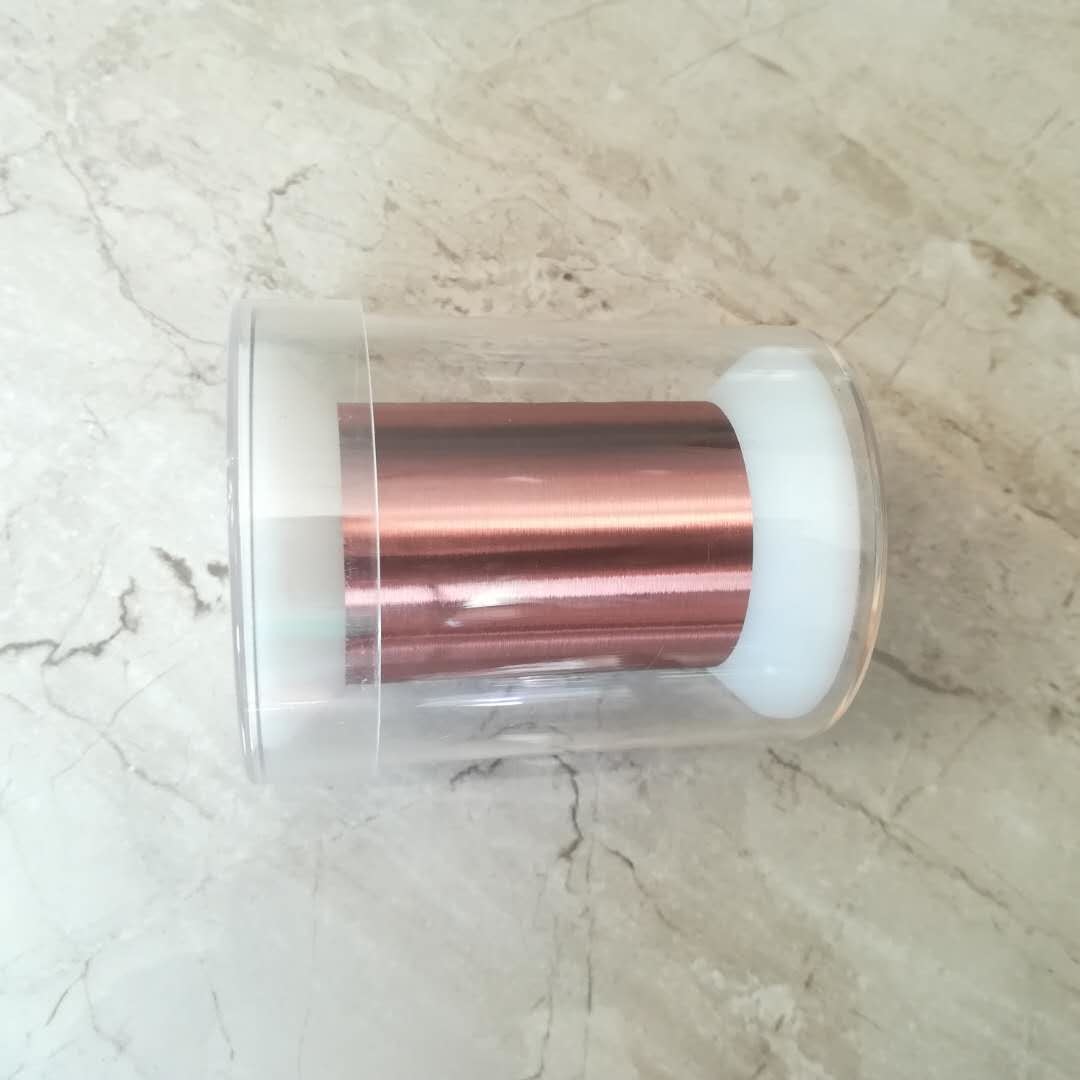

2UEW-F 0.019mm Super Thin Enamelled Copper Wire For Watch coils
In the field of electrical engineering and precision electronics, the quality of the materials used has a major impact on the performance and reliability of the equipment. Our ultra-fine enameled copper wire is at the forefront of this innovation, and the product is an excellent example of insulation performance and durability. With diameters ranging from an astonishing 0.012 mm to 1.3 mm, our enameled wire is designed to meet the stringent requirements of modern technology, especially in precision electronic instruments and equipment.
|
Nominal diameter(mm) |
0.019 |
||
|
Overall diameter |
Grade 1 |
Min(mm) |
0.021 |
|
Max(mm) |
0.023 |
||
|
Grade 2 |
Min(mm) |
0.024 |
|
|
Max(mm) |
0.026 |
||
|
Grade 3 |
Min(mm) |
0.027 |
|
|
Max(mm) |
0.028 |
||
|
Resistance at 20℃ |
Nom(Ohm/m) |
60.29 |
|
|
Min(Ohm/m) |
54.26 |
||
|
Max(Ohm/m) |
66.32 |
||
|
Breakdown voltage |
Grade 1 |
Min.(v) |
115 |
|
Grade 2 |
Min.(v) |
240 |
|
|
Grade 3 |
Min.(v) |
380 |
|
