Red Color Silk Covered Litz Wire 0.1mmx200 Polyester Served Copper Stranded Wire

기본 정보
원래 장소: 중국
브랜드 이름: RVYUAN
인증: ISO9001/ISO14001 /UL/SGS
모델 번호: USTC
최소 주문 수량: 10kg
가격: negotiable
포장 세부 사항: 통과 스풀
배달 시간: 2-15 워크딩 일
지불 조건: 협상
공급 능력: 당신의 요구를 충족시키세요
상세 정보
Diameter: 0.1mm Temperature: 155/180
인증: IEC/NEMA/JIS/RoHS/ISO AWG SIZE: 38
Conductor: Copper Strands: 200
Breakdown voltage: 1300 Insulation: UEW
Product name: High-quality 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz WireRed Color Silk Covered Litz Wire 0.1mmx200 Polyester Served Copper Stranded Wire Key word: Red Color Silk Covered Litz Wire 0.1mmx200 Polyester Served Copper Stranded Wire
강조하다:

0.1mmx200 Stranded Litz Wire

,

Silk Covered Litz Wire

,

Polyester Served Copper Stranded Wire


제품 설명

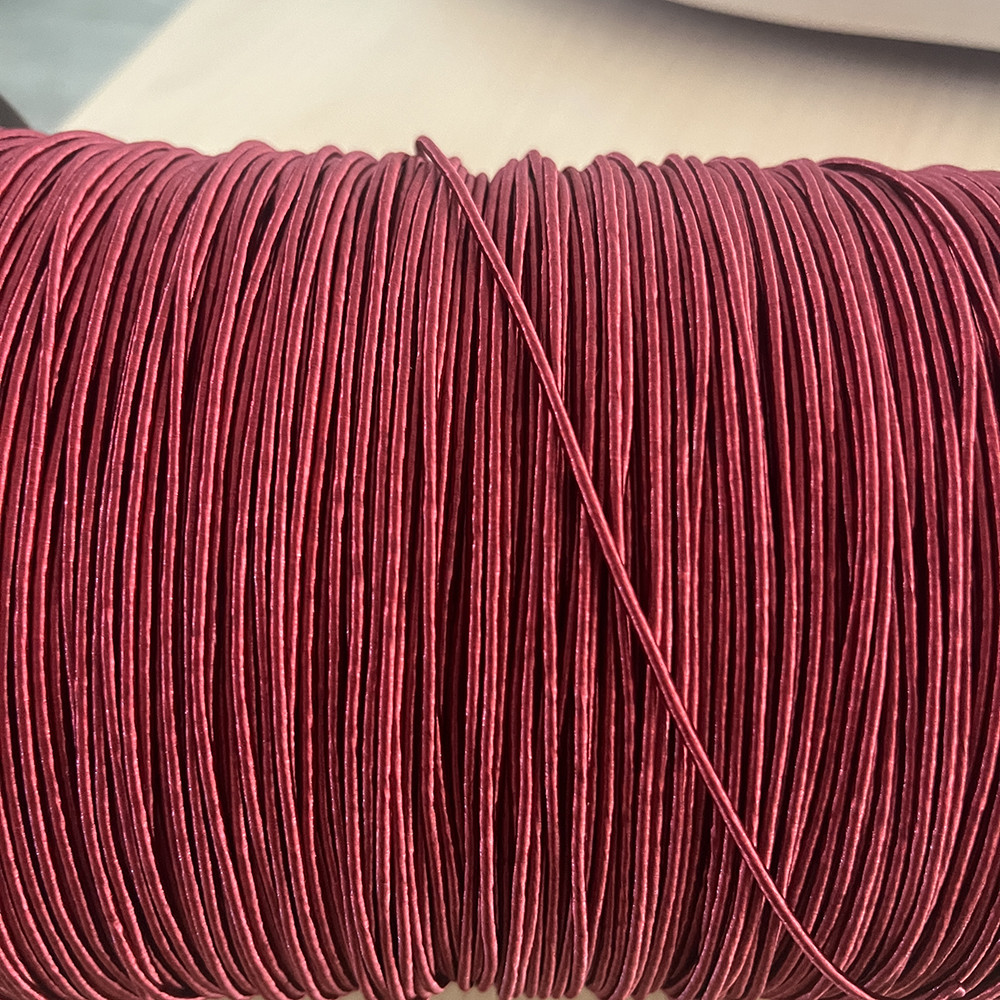

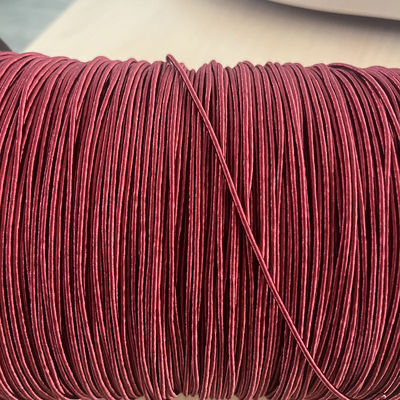

Red Color Silk Covered Litz Wire 0.1mmx200 Polyester Served Copper Stranded Wire



Our Litz wires are available in a variety of sizes, with single wire options ranging from 0.03mm to 0.5mm enameled copper wires. We primarily use solderable polyurethane enameled copper wires, which not only improves the durability of the wires but also ensures easy soldering during assembly. This feature is particularly beneficial for manufacturers and engineers who need to achieve reliable connections in their designs. Our Litz wires have excellent temperature resistance and are available in 155 and 180 degrees, making them suitable for a variety of environments and applications.



Outgoing test of stranded wire Spec: 0.1x200 Model: 2USTC-F
Item Standard Test result
Outer conductor diameter(mm) 0.107-0.125 0.110-0.114
Conductor diameter(mm) 0.10±0.003 0.0980-0.10
Overall diameter (mm) Max.1.98 1.75-1.85
Pitch(mm) 29±5
Max resistance (Ω/m at20℃) Max. 0.01191 0.01088
Breakdown voltage Mini (V) 1100 3000



Red Color Silk Covered Litz Wire 0.1mmx200 Polyester Served Copper Stranded Wire 0Red Color Silk Covered Litz Wire 0.1mmx200 Polyester Served Copper Stranded Wire 1
