| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | RVYUAN |
| 인증: | ISO9001/ISO14001 /UL/SGS |
| 모델 번호: | USTC |
| 최소 주문 수량: | 10kg |
| 가격: | negotiable |
| 포장 세부 사항: | 통과 스풀 |
| 배달 시간: | 2-15 워크딩 일 |
| 지불 조건: | 협상 |
| 공급 능력: | 당신의 요구를 충족시키세요 |
| Diameter: | 0.1mm | Temperature: | 155/180 |
|---|---|---|---|
| 인증: | IEC/NEMA/JIS/RoHS/ISO | AWG SIZE: | 38 |
| Conductor: | Copper | Strands: | 200 |
| Breakdown voltage: | 1300 | Insulation: | UEW |
| Product name: | High-quality 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire | Key word: | High-quality 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire |
| 강조하다: | Pure Copper Twisted Litz Wire,0.1mm Yarn Wrapped Litz Wire,Durable Twisted Litz Wire |
||

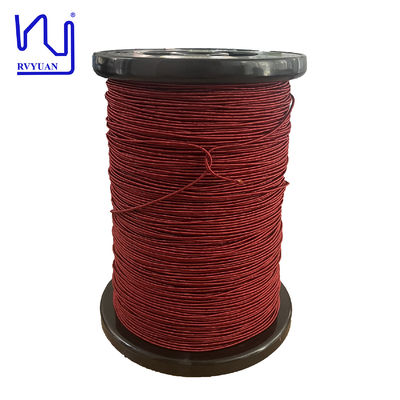

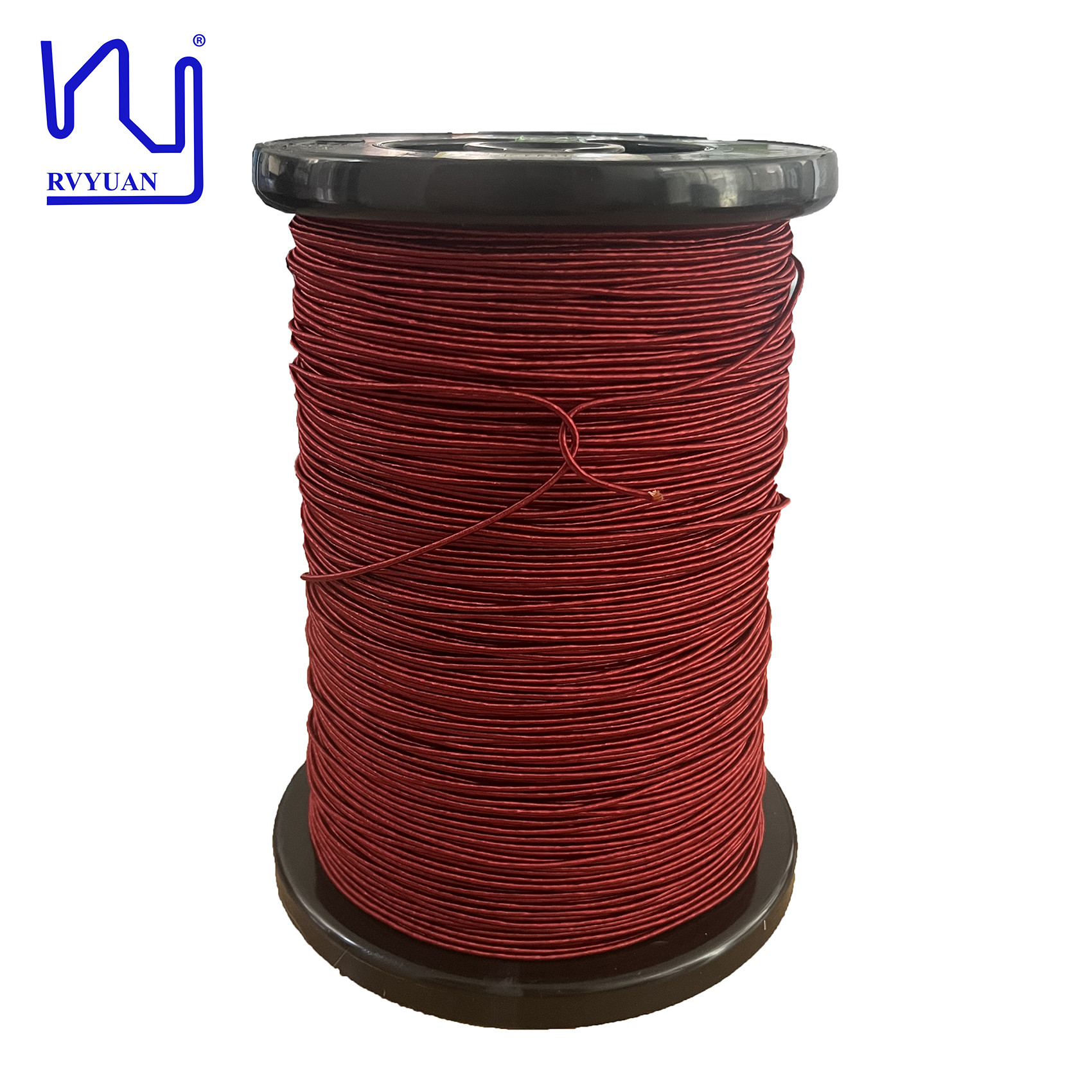

High-quality 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire
What makes our silk covered litz wire unique is its customization options. We understand that different projects may require specific color schemes or aesthetic preferences. That’s why we offer a wide range of colored polyester yarns, allowing you to customize the wire to meet your unique needs. Whether you need a specific color to match your design or create a unique look for branding purposes, we have a high-performance wire that’s designed just for you.
| Outgoing test of stranded wire | Spec: 0.1x200 | Model: 2USTC-F |
| Item | Standard | Test result |
| Outer conductor diameter(mm) | 0.107-0.125 | 0.110-0.114 |
| Conductor diameter(mm) | 0.10±0.003 | 0.0980-0.10 |
| Overall diameter (mm) | Max.1.98 | 1.75-1.85 |
| Pitch(mm) | 29±5 | √ |
| Max resistance (Ω/m at20℃) | Max. 0.01191 | 0.01088 |
| Breakdown voltage Mini (V) | 1100 | 3000 |
